SDO HMI 2014-05-29 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.41 | 168.36 | 15.78 | 84.71 | -9.05 | 25.17 | -5.74 | 145.31 | 0.1729 | 1063.5 | 431.9 | |
|
previous
or next observation for the same group /

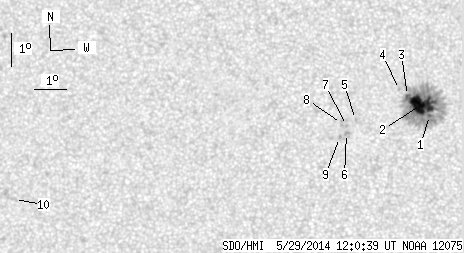

back to the solar disc SDO HMI 2014-05-29 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 156.54 | 0.45 | 78.67 | -9.30 | 25.75 | -5.17 | 148.42 | 0.1707 | 851.4 | 429.2 | |
| 29.97 | -1.00 | 15.06 | -1.00 | -8.97 | 25.50 | -5.41 | 146.14 | 0.1680 | 1302.4 | 999999 | |
| 0.54 | -1.00 | 0.27 | -1.00 | -8.69 | 25.08 | -5.84 | 143.12 | 0.1684 | 906.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -8.50 | 24.83 | -6.09 | 141.31 | 0.1685 | 657.0 | 523.3 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -9.42 | 23.45 | -7.47 | 138.87 | 0.1958 | 899.0 | 615.6 | |
| 0.00 | 2.35 | 0.00 | 1.19 | -9.85 | 23.16 | -7.76 | 139.23 | 0.2046 | 1074.0 | 869.7 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -9.60 | 23.17 | -7.75 | 138.44 | 0.2014 | 932.0 | 706.9 | |
| 0.00 | 2.53 | 0.00 | 1.28 | -9.54 | 23.01 | -7.91 | 137.67 | 0.2023 | 703.0 | 745.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -9.97 | 22.94 | -7.98 | 138.84 | 0.2086 | 682.0 | 624.1 | |
| 0.00 | 2.44 | 0.00 | 1.30 | -11.83 | 12.51 | -18.41 | 121.45 | 0.3639 | -593.0 | -479.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
