SDO HMI 2014-05-29 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.69 | 55.83 | 2.76 | 34.10 | -13.41 | 63.49 | 33.67 | 247.83 | 0.5849 | 291.2 | 305.8 | |
|
previous
or next observation for the same group /

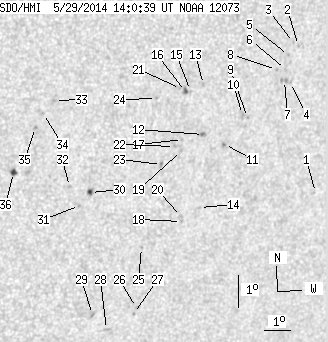

back to the solar disc SDO HMI 2014-05-29 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.24 | -14.54 | 69.30 | 39.49 | 248.85 | 0.6623 | -445.0 | -455.5 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -9.99 | 67.83 | 38.02 | 255.21 | 0.6296 | 591.0 | 518.6 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -9.90 | 67.62 | 37.81 | 255.29 | 0.6266 | 632.0 | 610.2 | |
| 0.00 | 1.72 | 0.00 | 1.09 | -11.13 | 67.68 | 37.87 | 253.38 | 0.6308 | 440.0 | 405.7 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -10.30 | 67.48 | 37.67 | 254.62 | 0.6258 | 667.0 | 556.3 | |
| 0.00 | 1.35 | 0.00 | 0.86 | -10.73 | 67.43 | 37.61 | 253.92 | 0.6263 | 615.0 | 513.2 | |
| 0.00 | 2.89 | 0.00 | 1.83 | -11.07 | 67.44 | 37.62 | 253.39 | 0.6274 | 707.0 | 718.6 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -10.73 | 67.08 | 37.26 | 253.80 | 0.6217 | 616.0 | 547.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -12.23 | 66.18 | 36.36 | 251.11 | 0.6146 | 623.0 | 550.3 | |
| 0.00 | 3.52 | 0.00 | 2.20 | -12.14 | 65.97 | 36.15 | 251.17 | 0.6116 | 527.0 | 435.3 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -13.07 | 65.43 | 35.61 | 249.45 | 0.6079 | -762.0 | -637.8 | |
| 0.00 | 2.53 | 0.00 | 1.56 | -12.77 | 64.57 | 34.76 | 249.56 | 0.5956 | 876.0 | 765.6 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -11.22 | 64.35 | 34.53 | 252.00 | 0.5868 | 712.0 | 527.4 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -15.05 | 64.81 | 35.00 | 246.05 | 0.6083 | 609.0 | 471.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -11.41 | 63.89 | 34.07 | 251.49 | 0.5813 | 519.0 | 514.9 | |
| 0.90 | 2.26 | 0.55 | 1.37 | -11.44 | 63.70 | 33.89 | 251.35 | 0.5789 | 820.8 | 704.2 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -12.93 | 63.80 | 33.99 | 248.93 | 0.5861 | 716.0 | 595.1 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -15.49 | 64.21 | 34.39 | 245.04 | 0.6026 | 777.0 | 620.1 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -13.27 | 63.82 | 34.00 | 248.38 | 0.5877 | 636.0 | 531.6 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -15.33 | 64.18 | 34.36 | 245.27 | 0.6015 | 732.0 | 539.9 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -11.35 | 63.50 | 33.69 | 251.42 | 0.5759 | 753.0 | 551.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -13.15 | 63.54 | 33.72 | 248.44 | 0.5834 | 615.0 | 583.0 | |
| 0.00 | 2.26 | 0.00 | 1.37 | -13.71 | 63.14 | 33.32 | 247.31 | 0.5806 | 874.0 | 637.3 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -11.67 | 62.65 | 32.84 | 250.50 | 0.5655 | 777.0 | 691.3 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -16.32 | 62.84 | 33.02 | 242.94 | 0.5895 | 772.0 | 599.4 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -18.22 | 63.03 | 33.22 | 240.12 | 0.6024 | 674.0 | 564.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -18.41 | 62.96 | 33.14 | 239.78 | 0.6026 | 593.0 | 553.1 | |
| 0.00 | 2.53 | 0.00 | 1.55 | -18.93 | 62.04 | 32.23 | 238.37 | 0.5946 | 203.0 | 142.2 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -18.46 | 61.41 | 31.60 | 238.66 | 0.5841 | 552.0 | 365.4 | |
| 1.53 | 2.71 | 0.91 | 1.61 | -14.61 | 60.65 | 30.83 | 244.37 | 0.5522 | -740.8 | -549.5 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -15.02 | 60.31 | 30.49 | 243.46 | 0.5500 | -753.0 | -572.1 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -14.43 | 59.85 | 30.04 | 244.17 | 0.5407 | -627.0 | -537.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -11.76 | 58.97 | 29.15 | 248.37 | 0.5150 | -778.0 | -629.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -12.16 | 58.62 | 28.81 | 247.41 | 0.5122 | -848.0 | -736.3 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -12.60 | 58.39 | 28.57 | 246.46 | 0.5112 | -827.0 | -689.2 | |
| 2.26 | 3.88 | 1.30 | 2.23 | -14.00 | 57.79 | 27.97 | 243.47 | 0.5107 | -871.0 | -644.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
