SDO HMI 2014-05-29 15:10:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 6.85 | 1.78 | 6.26 | -10.03 | 85.93 | 56.76 | 258.66 | 0.8418 | 283.6 | 331.7 | |
|
previous
or next observation for the same group /

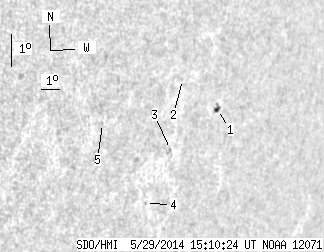

back to the solar disc SDO HMI 2014-05-29 15:10:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 4.24 | 1.78 | 3.99 | -9.59 | 87.12 | 57.95 | 259.32 | 0.8525 | 441.6 | 431.3 | |
| 0.00 | 0.45 | 0.00 | 0.40 | -8.70 | 84.92 | 55.74 | 260.16 | 0.8313 | 198.0 | 218.8 | |
| 0.00 | 0.90 | 0.00 | 0.80 | -10.86 | 84.80 | 55.62 | 257.56 | 0.8322 | 567.0 | 438.8 | |
| 0.00 | 0.72 | 0.00 | 0.63 | -12.54 | 83.93 | 54.76 | 255.41 | 0.8259 | 517.0 | 477.4 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -10.10 | 81.03 | 51.86 | 257.97 | 0.7939 | -429.0 | -471.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
