SDO HMI 2014-05-29 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.88 | 42.94 | 9.69 | 24.34 | -19.56 | 51.14 | 22.43 | 227.84 | 0.4860 | 366.8 | 5.7 | |
|
previous
or next observation for the same group /

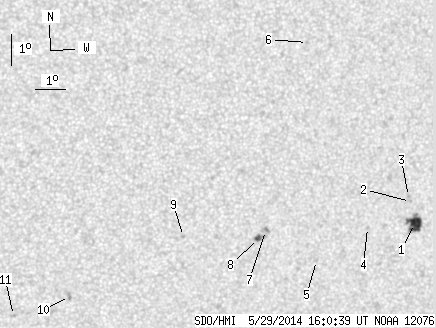

back to the solar disc SDO HMI 2014-05-29 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.44 | 22.92 | 8.33 | 13.22 | -19.35 | 53.92 | 25.21 | 231.75 | 0.5138 | 941.5 | 654.4 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -18.65 | 53.67 | 24.96 | 232.65 | 0.5049 | 781.0 | 673.4 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -18.49 | 53.57 | 24.86 | 232.82 | 0.5024 | 793.0 | 597.6 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -19.49 | 52.28 | 23.57 | 229.77 | 0.4957 | 617.0 | 498.6 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -20.56 | 50.65 | 21.94 | 226.13 | 0.4873 | 770.0 | 626.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -13.66 | 49.52 | 20.81 | 237.41 | 0.4114 | 800.0 | 547.3 | |
| 0.00 | 3.43 | 0.00 | 1.91 | -19.60 | 48.75 | 20.04 | 225.22 | 0.4567 | -966.0 | -824.5 | |
| 2.44 | 5.32 | 1.36 | 2.96 | -19.86 | 48.54 | 19.83 | 224.51 | 0.4570 | -921.1 | -710.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -19.81 | 45.98 | 17.27 | 220.81 | 0.4291 | -917.0 | -830.9 | |
| 0.00 | 2.98 | 0.00 | 1.62 | -21.76 | 42.34 | 13.63 | 211.64 | 0.4189 | -898.0 | -746.2 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -22.38 | 40.51 | 11.80 | 207.37 | 0.4130 | -715.0 | -631.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
