SDO HMI 2014-05-29 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.50 | 185.79 | 15.27 | 93.19 | -9.05 | 24.85 | -2.76 | 162.37 | 0.1521 | 755.7 | 409.2 | |
|
previous
or next observation for the same group /

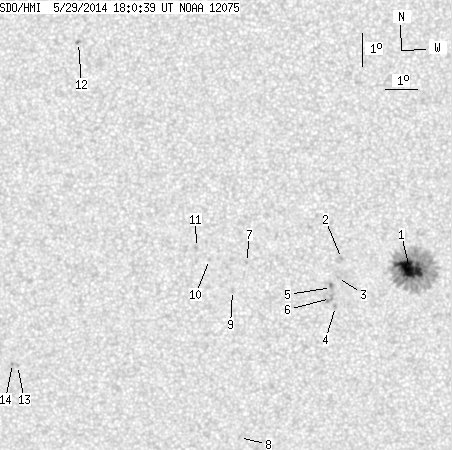

back to the solar disc SDO HMI 2014-05-29 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.50 | 163.08 | 15.27 | 81.65 | -8.99 | 25.49 | -2.12 | 165.36 | 0.1449 | 1303.5 | 430.7 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -8.68 | 23.40 | -4.21 | 151.62 | 0.1532 | 966.0 | 729.3 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -9.27 | 23.27 | -4.34 | 152.65 | 0.1632 | 931.0 | 716.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -10.16 | 23.19 | -4.41 | 154.63 | 0.1775 | 886.0 | 750.5 | |
| 0.00 | 2.80 | 0.00 | 1.41 | -9.57 | 23.08 | -4.53 | 152.51 | 0.1694 | 1053.0 | 961.2 | |
| 0.00 | 4.60 | 0.00 | 2.32 | -9.91 | 23.04 | -4.56 | 153.24 | 0.1748 | 890.0 | 817.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -8.80 | 20.46 | -7.14 | 137.96 | 0.1843 | -945.0 | -697.7 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -14.21 | 20.09 | -7.51 | 151.05 | 0.2629 | 929.0 | 647.1 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -9.66 | 20.01 | -7.59 | 139.23 | 0.2004 | -832.0 | -668.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -8.70 | 19.32 | -8.29 | 133.38 | 0.1969 | -763.0 | -572.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -8.33 | 18.92 | -8.68 | 130.66 | 0.1978 | -765.0 | -624.1 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -2.07 | 15.37 | -12.23 | 95.27 | 0.2136 | 961.0 | 866.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.94 | 13.14 | -14.46 | 127.98 | 0.3113 | -934.0 | -719.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.88 | 12.98 | -14.62 | 127.52 | 0.3128 | -919.0 | -789.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
