SDO HMI 2014-05-29 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.87 | 40.22 | 9.80 | 23.09 | -19.60 | 51.86 | 24.26 | 230.04 | 0.5060 | 245.1 | 18.2 | |
|
previous
or next observation for the same group /

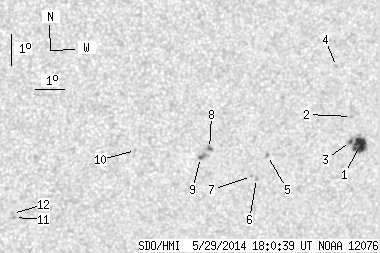

back to the solar disc SDO HMI 2014-05-29 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.99 | 22.92 | 8.15 | 13.35 | -19.47 | 54.02 | 26.42 | 232.75 | 0.5290 | 863.8 | 572.5 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -18.55 | 53.57 | 25.97 | 233.83 | 0.5163 | 808.0 | 604.2 | |
| 1.26 | -1.00 | 0.73 | -1.00 | -19.34 | 53.67 | 26.07 | 232.62 | 0.5239 | 965.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -16.96 | 52.80 | 25.20 | 235.78 | 0.4945 | 766.0 | 645.9 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -19.81 | 50.80 | 23.20 | 228.83 | 0.4943 | -779.0 | -603.1 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -20.55 | 50.53 | 22.93 | 227.32 | 0.4981 | 753.0 | 714.2 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -20.49 | 50.34 | 22.74 | 227.20 | 0.4955 | 731.0 | 655.2 | |
| 0.81 | 3.07 | 0.46 | 1.72 | -19.59 | 48.75 | 21.14 | 226.69 | 0.4689 | -939.2 | -835.5 | |
| 0.81 | 4.24 | 0.46 | 2.38 | -19.88 | 48.47 | 20.87 | 225.86 | 0.4688 | -940.6 | -826.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.67 | 46.22 | 18.61 | 223.08 | 0.4418 | -653.0 | -498.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -21.85 | 42.35 | 14.75 | 213.52 | 0.4298 | -863.0 | -724.3 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -21.72 | 42.27 | 14.67 | 213.56 | 0.4274 | -911.0 | -750.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
