SDO HMI 2014-05-29 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.26 | 40.23 | 8.35 | 23.30 | -19.56 | 51.80 | 25.31 | 231.19 | 0.5181 | 280.5 | 178.7 | |
|
previous
or next observation for the same group /

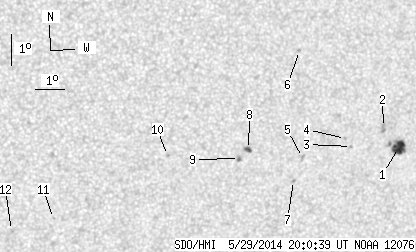

back to the solar disc SDO HMI 2014-05-29 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.36 | 19.40 | 7.28 | 11.42 | -19.49 | 54.07 | 27.58 | 233.79 | 0.5430 | 855.8 | 684.1 | |
| 0.00 | 4.15 | 0.00 | 2.42 | -18.85 | 53.41 | 26.92 | 234.21 | 0.5302 | 811.0 | 743.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -19.47 | 52.37 | 25.88 | 232.22 | 0.5226 | 703.0 | 560.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -19.21 | 52.11 | 25.62 | 232.38 | 0.5175 | 796.0 | 590.2 | |
| 0.00 | 2.44 | 0.00 | 1.40 | -19.83 | 50.68 | 24.19 | 229.89 | 0.5060 | -754.0 | -533.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -16.43 | 50.08 | 23.59 | 235.09 | 0.4701 | 824.0 | 653.8 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -20.57 | 50.48 | 23.99 | 228.49 | 0.5104 | 751.0 | 630.1 | |
| 1.90 | 3.52 | 1.07 | 1.99 | -19.58 | 48.74 | 22.25 | 228.08 | 0.4815 | -915.7 | -701.1 | |
| 0.00 | 2.71 | 0.00 | 1.53 | -19.87 | 48.47 | 21.98 | 227.27 | 0.4812 | -930.0 | -748.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.79 | 45.97 | 19.48 | 224.13 | 0.4526 | -809.0 | -740.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -21.84 | 42.33 | 15.84 | 215.37 | 0.4394 | -825.0 | -669.0 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -22.23 | 40.94 | 14.45 | 212.46 | 0.4322 | -671.0 | -579.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
