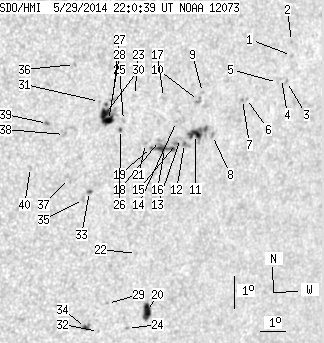

SDO HMI 2014-05-29 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.35 | 130.39 | 24.43 | 83.00 | -13.61 | 62.37 | 36.99 | 249.17 | 0.6283 | 210.4 | 135.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-29 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.98 | -10.36 | 67.58 | 42.20 | 255.76 | 0.6840 | 697.0 | 540.9 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -9.93 | 67.51 | 42.13 | 256.37 | 0.6823 | 463.0 | 444.8 | |
| 0.00 | 1.81 | 0.00 | 1.22 | -11.16 | 67.51 | 42.13 | 254.58 | 0.6850 | 546.0 | 489.5 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -11.07 | 67.29 | 41.91 | 254.65 | 0.6820 | 752.0 | 661.6 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -11.20 | 67.14 | 41.76 | 254.43 | 0.6805 | 575.0 | 518.5 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -11.70 | 65.95 | 40.57 | 253.35 | 0.6670 | 379.0 | 488.8 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -11.74 | 65.79 | 40.41 | 253.25 | 0.6651 | 735.0 | 627.6 | |
| 0.00 | 1.99 | 0.00 | 1.30 | -12.86 | 64.78 | 39.40 | 251.25 | 0.6557 | 629.0 | 501.8 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -11.54 | 64.14 | 38.76 | 253.03 | 0.6436 | 645.0 | 502.2 | |
| 0.00 | 3.25 | 0.00 | 2.10 | -11.78 | 64.02 | 38.64 | 252.61 | 0.6429 | 700.0 | 693.2 | |
| 6.95 | 18.23 | 4.50 | 11.83 | -12.84 | 64.09 | 38.71 | 251.04 | 0.6470 | 899.8 | 608.1 | |
| 0.54 | 3.70 | 0.35 | 2.39 | -13.12 | 63.70 | 38.32 | 250.46 | 0.6430 | 721.2 | 633.2 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -12.97 | 63.51 | 38.13 | 250.62 | 0.6401 | 551.0 | 442.8 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -12.44 | 63.26 | 37.88 | 251.33 | 0.6352 | 689.0 | 579.0 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -13.12 | 63.38 | 38.00 | 250.34 | 0.6390 | 809.0 | 675.2 | |
| 6.05 | 15.71 | 3.87 | 10.03 | -13.28 | 62.94 | 37.56 | 249.92 | 0.6339 | 791.9 | 491.1 | |
| 0.00 | 2.35 | 0.00 | 1.49 | -11.70 | 62.63 | 37.25 | 252.24 | 0.6246 | 199.0 | 173.1 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -13.04 | 62.70 | 37.31 | 250.20 | 0.6299 | 169.0 | 168.6 | |
| 0.54 | -16.00 | 0.34 | -16.00 | -13.26 | 62.42 | 37.04 | 249.74 | 0.6272 | 729.3 | 999999 | |
| 8.57 | 12.37 | 5.64 | 8.14 | -18.42 | 63.34 | 37.96 | 242.53 | 0.6601 | 766.7 | 508.6 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -13.14 | 62.16 | 36.78 | 249.83 | 0.6235 | 708.0 | 529.8 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -16.58 | 62.50 | 37.11 | 244.76 | 0.6416 | 607.0 | 491.5 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -11.65 | 61.50 | 36.12 | 251.89 | 0.6096 | 214.0 | 155.7 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -18.96 | 62.71 | 37.33 | 241.42 | 0.6554 | 772.0 | 615.1 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -12.43 | 61.19 | 35.81 | 250.53 | 0.6083 | 132.0 | 99.7 | |
| 0.72 | 1.35 | 0.45 | 0.84 | -12.71 | 61.12 | 35.74 | 250.06 | 0.6084 | 612.2 | 493.7 | |
| 0.00 | 2.98 | 0.00 | 1.84 | -11.78 | 60.67 | 35.29 | 251.35 | 0.5991 | -573.0 | -477.2 | |
| 6.68 | 24.37 | 4.13 | 15.06 | -12.43 | 60.62 | 35.24 | 250.28 | 0.6008 | -669.4 | -328.6 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -18.17 | 61.71 | 36.33 | 242.01 | 0.6397 | 632.0 | 479.5 | |
| 6.23 | -28.00 | 3.84 | -28.00 | -12.22 | 60.47 | 35.09 | 250.56 | 0.5980 | -796.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -11.85 | 60.19 | 34.81 | 251.04 | 0.5929 | -772.0 | -651.9 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -19.07 | 61.57 | 36.19 | 240.64 | 0.6426 | -388.0 | -341.4 | |
| 0.63 | 2.44 | 0.39 | 1.51 | -14.65 | 60.27 | 34.89 | 246.58 | 0.6052 | -742.7 | -537.0 | |
| 1.44 | 4.15 | 0.92 | 2.66 | -18.95 | 61.03 | 35.65 | 240.50 | 0.6355 | -775.2 | -626.1 | |
| 0.00 | 2.62 | 0.00 | 1.62 | -14.90 | 60.08 | 34.70 | 246.09 | 0.6040 | -779.0 | -637.5 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -10.71 | 59.10 | 33.72 | 252.47 | 0.5741 | -625.0 | -498.5 | |
| 0.00 | 3.79 | 0.00 | 2.33 | -14.25 | 59.39 | 34.01 | 246.77 | 0.5922 | -478.0 | -545.4 | |
| 0.00 | 2.71 | 0.00 | 1.65 | -12.88 | 59.02 | 33.64 | 248.81 | 0.5814 | -682.0 | -590.5 | |
| 0.00 | 2.08 | 0.00 | 1.25 | -12.54 | 58.34 | 32.96 | 249.03 | 0.5709 | -904.0 | -755.2 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -13.92 | 57.91 | 32.53 | 246.51 | 0.5713 | -819.0 | -626.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
