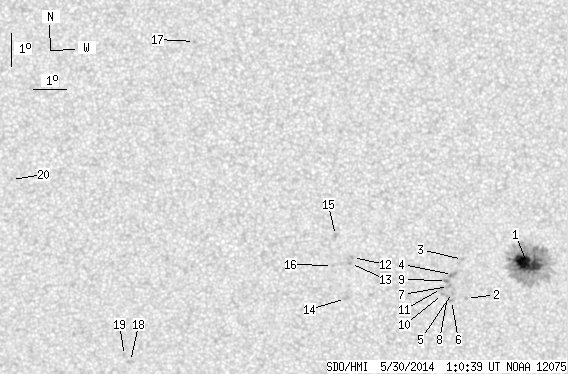

SDO HMI 2014-05-30 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.18 | 184.79 | 13.61 | 92.64 | -9.15 | 24.62 | 0.90 | 187.12 | 0.1509 | 638.1 | 381.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.18 | 152.86 | 13.61 | 76.55 | -9.05 | 25.57 | 1.85 | 192.72 | 0.1455 | 1270.9 | 440.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.13 | 23.69 | -0.03 | 179.83 | 0.1605 | 868.0 | 717.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -8.93 | 23.57 | -0.15 | 178.94 | 0.1398 | 777.0 | 551.3 | |
| 0.00 | 3.70 | 0.00 | 1.85 | -9.39 | 23.26 | -0.46 | 176.93 | 0.1479 | 975.0 | 905.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -9.94 | 23.26 | -0.46 | 177.11 | 0.1575 | 878.0 | 767.0 | |
| 0.00 | 2.08 | 0.00 | 1.04 | -10.19 | 23.23 | -0.49 | 177.00 | 0.1618 | 844.0 | 657.7 | |
| 0.00 | 2.53 | 0.00 | 1.27 | -9.76 | 23.14 | -0.58 | 176.27 | 0.1544 | 1095.0 | 820.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.06 | 23.11 | -0.61 | 176.20 | 0.1598 | 824.0 | 684.9 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -9.57 | 23.08 | -0.64 | 175.79 | 0.1513 | 1140.0 | 954.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.00 | 22.95 | -0.77 | 175.21 | 0.1589 | 810.0 | 709.1 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -9.82 | 22.92 | -0.80 | 174.92 | 0.1558 | 958.0 | 799.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -8.86 | 20.19 | -3.53 | 156.19 | 0.1515 | -926.0 | -770.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -9.04 | 20.12 | -3.60 | 156.30 | 0.1548 | -973.0 | -889.3 | |
| 0.00 | 2.89 | 0.00 | 1.45 | -10.12 | 19.96 | -3.76 | 157.97 | 0.1731 | -734.0 | -617.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -8.19 | 19.67 | -4.05 | 151.04 | 0.1450 | -918.0 | -664.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -9.10 | 19.57 | -4.15 | 153.31 | 0.1599 | -917.0 | -644.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -2.26 | 15.40 | -8.32 | 99.18 | 0.1471 | 916.0 | 714.6 | |
| 0.00 | 2.71 | 0.00 | 1.39 | -12.04 | 13.19 | -10.53 | 137.20 | 0.2642 | -665.0 | -622.2 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -11.86 | 13.01 | -10.71 | 136.22 | 0.2640 | -662.0 | -568.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -6.44 | 9.65 | -14.07 | 111.75 | 0.2613 | -778.0 | -571.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
