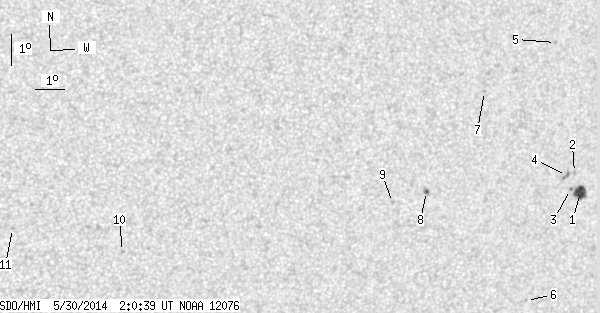

SDO HMI 2014-05-30 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.64 | 29.69 | 7.08 | 17.72 | -19.46 | 51.74 | 28.57 | 234.02 | 0.5570 | 451.9 | 290.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.56 | 13.45 | 6.45 | 8.21 | -19.56 | 54.29 | 31.12 | 236.54 | 0.5859 | 808.4 | 574.9 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -18.92 | 53.93 | 30.76 | 237.25 | 0.5774 | 753.0 | 657.1 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -19.47 | 53.89 | 30.72 | 236.38 | 0.5806 | 791.0 | 727.2 | |
| 0.00 | 3.34 | 0.00 | 2.02 | -19.02 | 53.65 | 30.48 | 236.89 | 0.5747 | 968.0 | 813.5 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -14.82 | 52.51 | 29.34 | 242.93 | 0.5341 | 859.0 | 671.2 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -23.08 | 53.05 | 29.88 | 230.40 | 0.5970 | 667.0 | 523.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -16.37 | 50.20 | 27.03 | 238.41 | 0.5139 | 695.0 | 573.9 | |
| 1.08 | 2.71 | 0.63 | 1.57 | -19.56 | 48.64 | 25.47 | 231.60 | 0.5190 | -952.9 | -721.1 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -19.92 | 47.49 | 24.32 | 229.82 | 0.5087 | -647.0 | -466.2 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -21.54 | 38.37 | 15.20 | 214.66 | 0.4305 | -646.0 | -537.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -20.80 | 34.61 | 11.44 | 208.59 | 0.3893 | -788.0 | -651.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
