SDO HMI 2014-05-30 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.42 | 110.80 | 22.36 | 75.93 | -13.30 | 62.61 | 42.19 | 251.46 | 0.6914 | 206.9 | 124.3 | |
|
previous
or next observation for the same group /

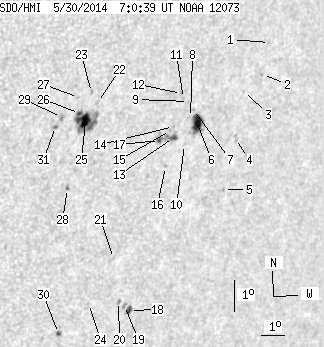

back to the solar disc SDO HMI 2014-05-30 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 1.00 | -10.11 | 67.71 | 47.28 | 257.14 | 0.7442 | 418.0 | 374.9 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -11.10 | 67.59 | 47.16 | 255.80 | 0.7445 | 598.0 | 550.9 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -11.63 | 66.84 | 46.41 | 254.92 | 0.7370 | 536.0 | 476.7 | |
| 0.00 | 2.62 | 0.00 | 1.92 | -13.09 | 66.81 | 46.38 | 252.96 | 0.7398 | 585.0 | 382.7 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -14.69 | 66.67 | 46.25 | 250.81 | 0.7421 | 397.0 | 401.8 | |
| 13.37 | 19.87 | 9.48 | 14.10 | -12.64 | 65.01 | 44.58 | 253.10 | 0.7181 | 784.2 | 514.6 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -12.21 | 64.74 | 44.31 | 253.62 | 0.7139 | 507.0 | 463.4 | |
| 0.00 | 2.17 | 0.00 | 1.53 | -12.46 | 64.66 | 44.24 | 253.26 | 0.7136 | 570.0 | 426.8 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -11.96 | 64.47 | 44.04 | 253.89 | 0.7102 | 638.0 | 615.4 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -13.30 | 64.59 | 44.16 | 252.08 | 0.7148 | 337.0 | 351.1 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -11.87 | 64.24 | 43.81 | 253.96 | 0.7072 | 750.0 | 613.4 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -11.72 | 64.12 | 43.69 | 254.14 | 0.7054 | 823.0 | 729.0 | |
| 2.53 | 12.56 | 1.77 | 8.74 | -13.09 | 64.06 | 43.63 | 252.22 | 0.7081 | 769.5 | 648.6 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -12.74 | 63.98 | 43.56 | 252.68 | 0.7064 | 468.0 | 455.0 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -12.87 | 63.88 | 43.46 | 252.47 | 0.7055 | 774.0 | 729.0 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -13.99 | 63.92 | 43.49 | 250.93 | 0.7089 | 584.0 | 511.1 | |
| 1.54 | -13.00 | 1.06 | -13.00 | -13.19 | 63.48 | 43.05 | 251.91 | 0.7015 | 791.8 | 999999 | |
| 2.89 | 4.70 | 2.06 | 3.34 | -18.55 | 63.60 | 43.17 | 244.65 | 0.7201 | 604.7 | 355.3 | |
| 0.00 | 2.26 | 0.00 | 1.60 | -18.39 | 63.33 | 42.90 | 244.75 | 0.7166 | 774.0 | 598.8 | |
| 0.00 | 1.72 | 0.00 | 1.21 | -18.26 | 63.03 | 42.60 | 244.80 | 0.7128 | 628.0 | 677.7 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -16.90 | 62.42 | 41.99 | 246.40 | 0.7009 | 500.0 | 502.6 | |
| 0.00 | 2.44 | 0.00 | 1.61 | -12.03 | 60.65 | 40.23 | 252.69 | 0.6639 | -492.0 | -259.4 | |
| 0.00 | 1.90 | 0.00 | 1.25 | -11.72 | 60.36 | 39.93 | 253.05 | 0.6593 | -606.0 | -499.5 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -18.34 | 61.76 | 41.33 | 244.16 | 0.6988 | -472.0 | -416.1 | |
| 8.94 | 36.76 | 5.89 | 24.22 | -12.59 | 60.27 | 39.84 | 251.74 | 0.6607 | -851.1 | -168.7 | |
| 1.17 | -25.00 | 0.77 | -25.00 | -12.38 | 59.99 | 39.56 | 251.96 | 0.6565 | -846.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -11.88 | 59.86 | 39.43 | 252.65 | 0.6534 | -607.0 | -547.4 | |
| 0.45 | 1.81 | 0.30 | 1.19 | -14.72 | 59.96 | 39.54 | 248.51 | 0.6640 | -747.0 | -587.8 | |
| 0.00 | 2.62 | 0.00 | 1.70 | -12.51 | 59.28 | 38.86 | 251.52 | 0.6481 | -827.0 | -696.7 | |
| 1.17 | 2.53 | 0.80 | 1.73 | -19.31 | 60.76 | 40.34 | 242.39 | 0.6917 | -752.1 | -587.5 | |
| 0.36 | 2.44 | 0.23 | 1.58 | -12.79 | 59.09 | 38.67 | 251.02 | 0.6466 | -760.2 | -654.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
