SDO HMI 2014-05-30 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.19 | 112.97 | 18.93 | 78.46 | -13.11 | 62.38 | 43.05 | 251.98 | 0.7011 | -10.0 | 130.7 | |
|
previous
or next observation for the same group /

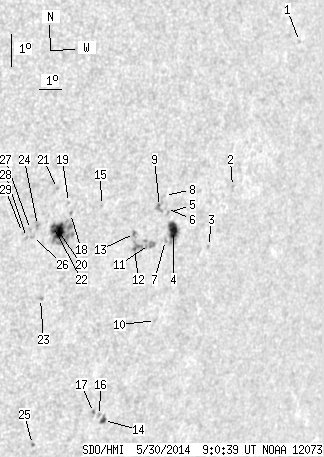

back to the solar disc SDO HMI 2014-05-30 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.85 | -6.69 | 69.84 | 50.51 | 262.07 | 0.7761 | -530.0 | -438.5 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -11.17 | 67.48 | 48.15 | 255.88 | 0.7557 | 489.0 | 504.9 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -13.04 | 66.80 | 47.47 | 253.28 | 0.7519 | 553.0 | 460.1 | |
| 10.57 | 17.43 | 7.65 | 12.62 | -12.56 | 65.09 | 45.76 | 253.51 | 0.7316 | 832.2 | 490.0 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -12.01 | 64.74 | 45.41 | 254.17 | 0.7264 | 651.0 | 515.8 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -11.88 | 64.63 | 45.30 | 254.31 | 0.7248 | 576.0 | 479.4 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -12.88 | 64.80 | 45.47 | 253.01 | 0.7290 | 782.0 | 711.2 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -11.48 | 64.46 | 45.13 | 254.82 | 0.7219 | 620.0 | 592.7 | |
| 0.00 | 5.60 | 0.00 | 3.99 | -11.82 | 64.31 | 44.98 | 254.31 | 0.7209 | 853.0 | 687.8 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -15.38 | 65.00 | 45.67 | 249.72 | 0.7375 | 442.0 | 390.8 | |
| 0.00 | 7.41 | 0.00 | 5.28 | -13.01 | 64.12 | 44.79 | 252.65 | 0.7215 | 802.0 | 678.4 | |
| 0.72 | 6.96 | 0.51 | 4.92 | -13.14 | 63.50 | 44.16 | 252.30 | 0.7145 | 827.2 | 648.9 | |
| 0.45 | 2.62 | 0.32 | 1.84 | -12.67 | 63.39 | 44.06 | 252.91 | 0.7121 | -414.6 | -253.8 | |
| 2.35 | 4.70 | 1.70 | 3.40 | -18.56 | 63.62 | 44.29 | 245.06 | 0.7324 | 599.6 | 404.9 | |
| 0.00 | 1.26 | 0.00 | 0.86 | -11.82 | 61.80 | 42.47 | 253.67 | 0.6910 | -401.0 | -387.4 | |
| 0.00 | 2.44 | 0.00 | 1.76 | -18.40 | 63.39 | 44.06 | 245.17 | 0.7293 | 815.0 | 575.4 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -18.31 | 63.09 | 43.76 | 245.18 | 0.7258 | 779.0 | 675.0 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -12.07 | 60.55 | 41.22 | 252.93 | 0.6764 | -354.0 | -345.1 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -11.73 | 60.41 | 41.08 | 253.38 | 0.6737 | -631.0 | -512.6 | |
| 11.65 | 39.83 | 7.79 | 26.67 | -12.61 | 60.16 | 40.83 | 252.03 | 0.6730 | -875.5 | -109.7 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -11.30 | 59.88 | 40.55 | 253.85 | 0.6660 | -753.0 | -603.3 | |
| 1.45 | -20.00 | 0.96 | -20.00 | -12.48 | 59.93 | 40.60 | 252.13 | 0.6698 | -875.1 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.33 | -14.73 | 59.86 | 40.53 | 248.86 | 0.6761 | -707.0 | -641.8 | |
| 0.00 | 3.52 | 0.00 | 2.32 | -12.46 | 59.27 | 39.94 | 251.95 | 0.6616 | -819.0 | -692.6 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -19.35 | 60.75 | 41.42 | 242.82 | 0.7040 | -624.0 | -620.7 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -12.80 | 59.13 | 39.80 | 251.40 | 0.6609 | -647.0 | -574.9 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -12.58 | 59.01 | 39.68 | 251.68 | 0.6587 | -784.0 | -650.5 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -12.83 | 58.89 | 39.56 | 251.27 | 0.6580 | -667.0 | -576.8 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -12.68 | 58.70 | 39.37 | 251.43 | 0.6552 | -475.0 | -366.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
