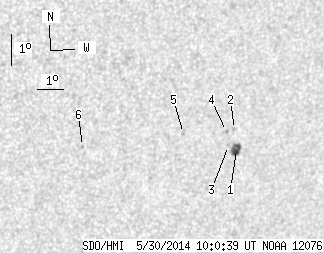

SDO HMI 2014-05-30 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.95 | 16.17 | 4.48 | 10.34 | -19.53 | 53.98 | 35.20 | 239.26 | 0.6339 | 622.5 | 451.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.95 | 10.12 | 4.48 | 6.52 | -19.68 | 54.58 | 35.80 | 239.44 | 0.6418 | 803.5 | 576.9 | |
| 0.00 | 1.72 | 0.00 | 1.10 | -19.04 | 54.34 | 35.55 | 240.22 | 0.6355 | 690.0 | 522.4 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -19.56 | 54.23 | 35.45 | 239.41 | 0.6370 | 758.0 | 571.8 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -19.11 | 54.04 | 35.25 | 239.95 | 0.6324 | 806.0 | 731.0 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -19.18 | 52.37 | 33.59 | 238.79 | 0.6132 | 802.0 | 707.8 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -19.62 | 48.64 | 29.85 | 235.41 | 0.5717 | -755.0 | -659.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
