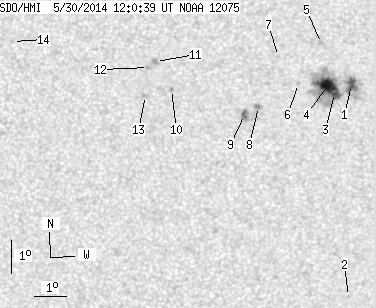

SDO HMI 2014-05-30 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.35 | 138.34 | 14.83 | 69.84 | -9.09 | 24.91 | 7.22 | 220.16 | 0.1922 | 623.5 | 410.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.50 | 109.81 | 3.29 | 55.49 | -8.98 | 26.17 | 8.49 | 225.89 | 0.2040 | 1078.7 | 535.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.56 | 26.29 | 8.60 | 209.59 | 0.2931 | -743.0 | -513.2 | |
| 3.34 | -1.00 | 1.69 | -1.00 | -9.26 | 25.65 | 7.97 | 223.11 | 0.2010 | 995.1 | 999999 | |
| 17.52 | -1.00 | 8.85 | -1.00 | -9.01 | 25.43 | 7.74 | 223.17 | 0.1954 | 1367.0 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.32 | -7.73 | 25.22 | 7.53 | 227.37 | 0.1774 | -499.0 | -353.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -8.95 | 24.53 | 6.84 | 219.90 | 0.1843 | 830.0 | 608.8 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -8.12 | 23.90 | 6.21 | 220.27 | 0.1665 | 721.0 | 533.8 | |
| 0.00 | 3.79 | 0.00 | 1.91 | -9.66 | 23.30 | 5.62 | 212.24 | 0.1816 | 1072.0 | 920.5 | |
| 1.99 | 8.04 | 1.00 | 4.05 | -9.91 | 22.87 | 5.19 | 209.53 | 0.1815 | 1177.3 | 868.8 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -9.14 | 20.61 | 2.92 | 199.29 | 0.1531 | -1035.0 | -796.0 | |
| 0.00 | 3.70 | 0.00 | 1.85 | -8.28 | 20.11 | 2.43 | 197.98 | 0.1362 | -1061.0 | -841.6 | |
| 0.00 | 2.17 | 0.00 | 1.08 | -8.46 | 19.90 | 2.21 | 196.10 | 0.1382 | -998.0 | -813.8 | |
| 0.00 | 2.44 | 0.00 | 1.22 | -9.32 | 19.81 | 2.12 | 193.96 | 0.1522 | -541.0 | -367.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -7.66 | 15.72 | -1.96 | 164.00 | 0.1236 | -769.0 | -632.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
