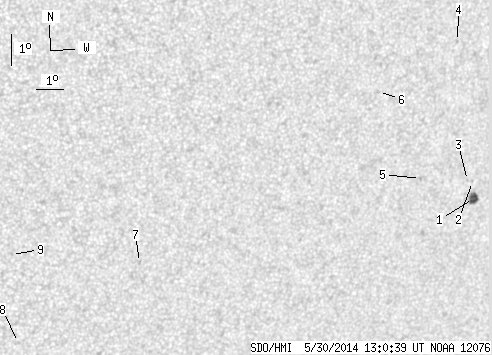

SDO HMI 2014-05-30 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.77 | 18.57 | 4.47 | 11.83 | -19.54 | 51.51 | 34.38 | 238.17 | 0.6265 | 393.0 | 251.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.77 | 9.21 | 4.47 | 6.07 | -19.73 | 54.67 | 37.54 | 240.37 | 0.6621 | 782.6 | 562.2 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -19.18 | 54.49 | 37.35 | 241.03 | 0.6572 | 599.0 | 482.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -19.15 | 54.28 | 37.14 | 240.96 | 0.6546 | 778.0 | 607.1 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -14.76 | 52.89 | 35.76 | 246.74 | 0.6173 | 722.0 | 597.5 | |
| 0.00 | 1.35 | 0.00 | 0.86 | -19.10 | 52.38 | 35.25 | 239.95 | 0.6323 | 678.0 | 479.7 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -16.35 | 50.17 | 33.03 | 242.76 | 0.5905 | 686.0 | 581.8 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -21.87 | 42.40 | 25.26 | 227.74 | 0.5372 | -614.0 | -511.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -24.52 | 38.52 | 21.39 | 219.52 | 0.5234 | -773.0 | -572.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -21.63 | 37.80 | 20.67 | 222.71 | 0.4857 | -674.0 | -535.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
