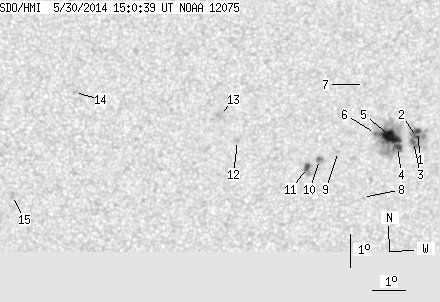

SDO HMI 2014-05-30 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.43 | 127.19 | 14.94 | 64.49 | -9.12 | 24.87 | 8.84 | 225.63 | 0.2127 | 772.9 | 485.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 26.45 | 1.38 | 13.45 | -8.85 | 26.26 | 10.23 | 231.56 | 0.2250 | 1051.9 | 676.4 | |
| 1.17 | -1.00 | 0.60 | -1.00 | -9.04 | 26.27 | 10.23 | 230.93 | 0.2270 | 1044.4 | 999999 | |
| 1.72 | -1.00 | 0.87 | -1.00 | -9.16 | 26.14 | 10.11 | 230.17 | 0.2267 | 989.6 | 999999 | |
| 3.52 | 78.37 | 1.79 | 39.75 | -9.31 | 25.65 | 9.62 | 228.24 | 0.2220 | 934.9 | 528.4 | |
| 15.98 | -4.00 | 8.11 | -4.00 | -9.01 | 25.42 | 9.39 | 228.63 | 0.2157 | 1370.6 | 999999 | |
| 0.63 | -4.00 | 0.32 | -4.00 | -8.92 | 24.95 | 8.92 | 227.52 | 0.2087 | 988.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -7.42 | 24.58 | 8.55 | 232.20 | 0.1874 | 803.0 | 552.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -10.88 | 24.60 | 8.57 | 220.01 | 0.2285 | 527.0 | 517.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -9.47 | 23.81 | 7.78 | 221.72 | 0.2016 | 803.0 | 723.8 | |
| 0.99 | 4.60 | 0.50 | 2.33 | -9.72 | 23.23 | 7.20 | 218.72 | 0.1983 | 1110.4 | 835.8 | |
| 2.71 | 7.22 | 1.37 | 3.65 | -9.96 | 22.86 | 6.83 | 216.50 | 0.1978 | 1134.4 | 791.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -9.13 | 20.68 | 4.65 | 209.08 | 0.1654 | -927.0 | -773.8 | |
| 0.00 | 2.89 | 0.00 | 1.45 | -8.37 | 20.12 | 4.09 | 208.35 | 0.1491 | -937.0 | -853.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -7.66 | 15.66 | -0.37 | 176.92 | 0.1191 | -864.0 | -638.1 | |
| 0.00 | 2.35 | 0.00 | 1.18 | -10.82 | 13.74 | -2.29 | 167.20 | 0.1781 | -818.0 | -728.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
