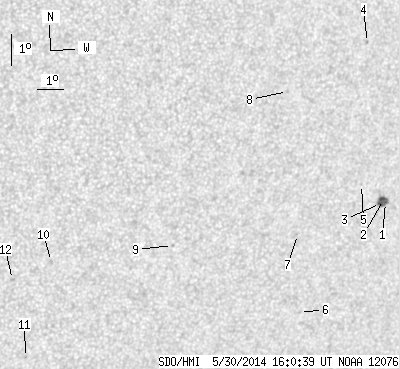

SDO HMI 2014-05-30 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.77 | 18.50 | 4.58 | 12.00 | -20.25 | 51.08 | 35.60 | 238.04 | 0.6444 | 295.0 | 82.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 9.30 | 0.79 | 6.29 | -19.80 | 54.93 | 39.46 | 241.26 | 0.6842 | 593.9 | 489.1 | |
| 3.16 | -1.00 | 2.14 | -1.00 | -19.71 | 54.82 | 39.34 | 241.34 | 0.6825 | 785.2 | 999999 | |
| 2.44 | -1.00 | 1.65 | -1.00 | -19.84 | 54.74 | 39.26 | 241.12 | 0.6821 | 729.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -14.74 | 52.95 | 37.47 | 247.57 | 0.6388 | 619.0 | 546.0 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -19.23 | 53.78 | 38.30 | 241.46 | 0.6684 | 666.0 | 547.0 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -23.40 | 52.47 | 36.99 | 235.03 | 0.6761 | 489.0 | 379.6 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -20.86 | 51.62 | 36.14 | 237.97 | 0.6523 | 531.0 | 462.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -16.30 | 50.14 | 34.66 | 243.78 | 0.6106 | 764.0 | 664.3 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -21.25 | 46.81 | 31.33 | 234.13 | 0.6003 | -609.0 | -512.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -21.79 | 42.40 | 26.92 | 229.52 | 0.5548 | -759.0 | -589.9 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -24.96 | 42.12 | 26.64 | 224.78 | 0.5794 | -660.0 | -558.9 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -22.38 | 41.09 | 25.61 | 227.34 | 0.5456 | -388.0 | -335.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
