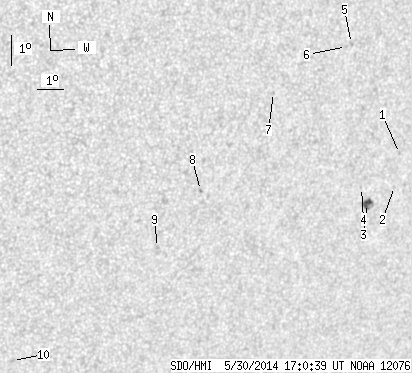

SDO HMI 2014-05-30 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.87 | 19.48 | 3.32 | 12.89 | -19.21 | 52.52 | 37.60 | 240.88 | 0.6617 | 332.0 | 197.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.68 | -18.15 | 55.71 | 40.79 | 244.15 | 0.6921 | 253.0 | 237.5 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -19.21 | 55.81 | 40.88 | 242.75 | 0.6975 | 557.0 | 434.6 | |
| 4.87 | 8.67 | 3.32 | 5.91 | -19.76 | 54.83 | 39.91 | 241.54 | 0.6890 | 772.3 | 468.9 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -19.25 | 54.43 | 39.50 | 242.04 | 0.6822 | 559.0 | 450.8 | |
| 0.00 | 1.90 | 0.00 | 1.23 | -14.70 | 52.90 | 37.98 | 247.85 | 0.6449 | 676.0 | 519.9 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -14.79 | 52.72 | 37.80 | 247.63 | 0.6431 | 565.0 | 428.3 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -16.26 | 50.15 | 35.23 | 244.15 | 0.6175 | 588.0 | 595.2 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -19.39 | 48.01 | 33.09 | 238.13 | 0.6086 | -680.0 | -616.9 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -21.24 | 46.79 | 31.87 | 234.55 | 0.6063 | -393.0 | -373.7 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -24.98 | 42.17 | 27.25 | 225.33 | 0.5858 | -599.0 | -484.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
