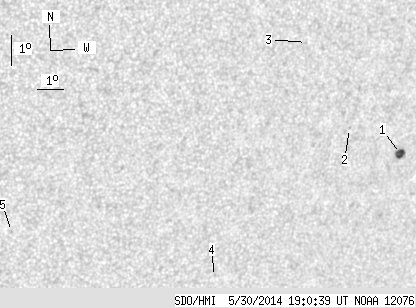

SDO HMI 2014-05-30 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.78 | 10.73 | 4.01 | 7.26 | -19.91 | 52.88 | 39.07 | 240.63 | 0.6808 | 482.1 | 284.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.78 | 7.49 | 4.01 | 5.20 | -19.78 | 54.96 | 41.15 | 242.09 | 0.7029 | 727.1 | 467.9 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -19.00 | 52.58 | 38.77 | 242.02 | 0.6727 | 613.0 | 505.6 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -16.28 | 50.18 | 36.37 | 244.72 | 0.6317 | 666.0 | 589.0 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -23.84 | 48.48 | 34.67 | 232.93 | 0.6543 | 387.0 | 322.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -22.41 | 40.31 | 26.49 | 228.19 | 0.5554 | -720.0 | -583.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
