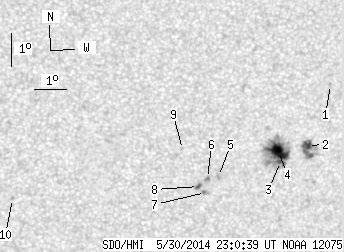

SDO HMI 2014-05-30 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.56 | 100.41 | 12.66 | 51.75 | -9.06 | 25.28 | 13.69 | 238.19 | 0.2761 | 966.0 | 617.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-30 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.61 | -6.92 | 26.99 | 15.39 | 247.98 | 0.2855 | 827.0 | 632.8 | |
| 5.15 | 22.85 | 2.66 | 11.82 | -8.78 | 26.32 | 14.73 | 241.06 | 0.2884 | 1067.6 | 664.0 | |
| 2.89 | 63.84 | 1.49 | 32.90 | -9.28 | 25.48 | 13.89 | 238.12 | 0.2803 | 908.2 | 605.5 | |
| 15.35 | -3.00 | 7.91 | -3.00 | -8.97 | 25.41 | 13.82 | 238.94 | 0.2766 | 1217.2 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.11 | -9.74 | 23.54 | 11.95 | 232.73 | 0.2576 | 894.0 | 683.0 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -9.80 | 23.20 | 11.60 | 231.73 | 0.2536 | 1025.0 | 843.4 | |
| 0.00 | 3.25 | 0.00 | 1.67 | -10.24 | 23.15 | 11.56 | 230.28 | 0.2574 | 919.0 | 736.9 | |
| 1.17 | 2.44 | 0.60 | 1.25 | -10.05 | 22.92 | 11.33 | 230.30 | 0.2525 | 1063.3 | 884.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -8.91 | 22.38 | 10.79 | 232.69 | 0.2336 | 738.0 | 635.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -10.43 | 17.12 | 5.53 | 209.61 | 0.1927 | -836.0 | -620.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
