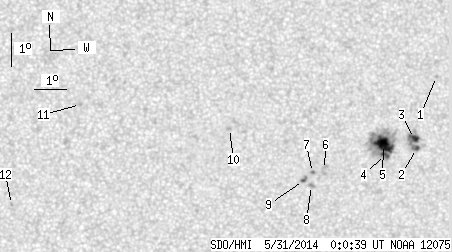

SDO HMI 2014-05-31 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.08 | 96.90 | 15.03 | 50.00 | -9.07 | 24.97 | 13.93 | 238.30 | 0.2800 | 795.6 | 548.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.47 | -6.88 | 27.01 | 15.97 | 248.77 | 0.2943 | 751.0 | 625.0 | |
| 1.63 | 16.71 | 0.84 | 8.67 | -9.08 | 26.45 | 15.41 | 241.20 | 0.3008 | 802.5 | 763.1 | |
| 4.79 | -2.00 | 2.48 | -2.00 | -8.78 | 26.38 | 15.34 | 242.00 | 0.2973 | 1016.1 | 999999 | |
| 3.34 | 62.40 | 1.73 | 32.23 | -9.27 | 25.47 | 14.43 | 239.07 | 0.2881 | 852.0 | 564.1 | |
| 18.42 | -4.00 | 9.52 | -4.00 | -8.96 | 25.40 | 14.36 | 239.88 | 0.2844 | 1190.1 | 999999 | |
| 0.00 | 4.61 | 0.00 | 2.37 | -9.74 | 23.56 | 12.52 | 233.98 | 0.2653 | 688.0 | 680.2 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -9.83 | 23.18 | 12.14 | 232.87 | 0.2611 | 981.0 | 854.8 | |
| 0.00 | 2.53 | 0.00 | 1.30 | -10.23 | 23.17 | 12.13 | 231.61 | 0.2649 | 917.0 | 763.9 | |
| 0.90 | 3.52 | 0.46 | 1.81 | -10.08 | 22.91 | 11.87 | 231.49 | 0.2599 | 1057.4 | 866.2 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -8.48 | 20.54 | 9.50 | 230.73 | 0.2119 | -872.0 | -712.5 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -7.75 | 15.92 | 4.88 | 214.93 | 0.1479 | -763.0 | -555.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.82 | 13.82 | 2.78 | 195.34 | 0.1809 | -921.0 | -768.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
