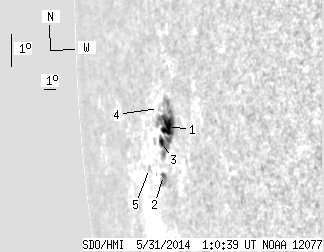

SDO HMI 2014-05-31 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.89 | 74.70 | 27.79 | 123.23 | -4.97 | 297.95 | -72.54 | 94.95 | 0.9552 | 457.8 | 213.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.38 | 64.40 | 18.48 | 105.38 | -4.68 | 298.28 | -72.20 | 94.65 | 0.9534 | 559.7 | 210.6 | |
| 1.63 | 7.50 | 2.76 | 12.81 | -6.16 | 297.40 | -73.09 | 96.20 | 0.9581 | 620.4 | 366.9 | |
| 3.88 | -1.00 | 6.55 | -1.00 | -5.16 | 297.53 | -72.96 | 95.14 | 0.9574 | 274.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 1.68 | -4.12 | 297.49 | -73.00 | 94.06 | 0.9575 | -150.0 | -106.1 | |
| 0.00 | 1.81 | 0.00 | 3.36 | -5.93 | 295.93 | -74.56 | 95.93 | 0.9651 | -63.0 | -14.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
