SDO HMI 2014-05-31 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.54 | 35.19 | 12.04 | 29.07 | -13.27 | 61.99 | 52.05 | 253.90 | 0.8002 | -163.1 | -192.2 | |
|
previous
or next observation for the same group /

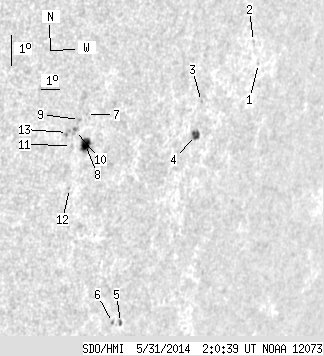

back to the solar disc SDO HMI 2014-05-31 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 1.04 | -10.47 | 68.50 | 58.56 | 258.25 | 0.8590 | 340.0 | 265.2 | |
| 0.00 | 0.90 | 0.00 | 0.86 | -9.79 | 68.01 | 58.07 | 258.99 | 0.8541 | 435.0 | 383.6 | |
| 0.00 | 0.63 | 0.00 | 0.56 | -11.68 | 65.59 | 55.65 | 256.47 | 0.8337 | 434.0 | 426.1 | |
| 4.61 | 6.77 | 4.12 | 6.07 | -12.73 | 65.59 | 55.65 | 255.21 | 0.8350 | 599.8 | 374.1 | |
| 0.99 | 2.08 | 0.87 | 1.83 | -18.65 | 63.81 | 53.88 | 247.82 | 0.8286 | 360.4 | 324.1 | |
| 0.00 | 1.35 | 0.00 | 1.18 | -18.66 | 63.38 | 53.44 | 247.71 | 0.8246 | 518.0 | 488.1 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -12.14 | 59.77 | 49.84 | 254.92 | 0.7761 | -519.0 | -469.3 | |
| 8.94 | 11.56 | 7.05 | 9.11 | -13.07 | 59.97 | 50.04 | 253.77 | 0.7798 | -631.9 | -378.6 | |
| 0.00 | 1.35 | 0.00 | 1.05 | -12.29 | 59.48 | 49.54 | 254.65 | 0.7732 | -626.0 | -591.8 | |
| 0.00 | 3.70 | 0.00 | 2.88 | -12.64 | 59.37 | 49.44 | 254.19 | 0.7727 | -739.0 | -637.0 | |
| 0.00 | 1.26 | 0.00 | 0.98 | -13.10 | 59.30 | 49.37 | 253.58 | 0.7728 | -552.0 | -436.4 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -14.45 | 59.59 | 49.66 | 251.94 | 0.7786 | -523.0 | -412.5 | |
| 0.00 | 2.89 | 0.00 | 2.23 | -12.70 | 59.01 | 49.07 | 254.03 | 0.7689 | -692.0 | -670.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
