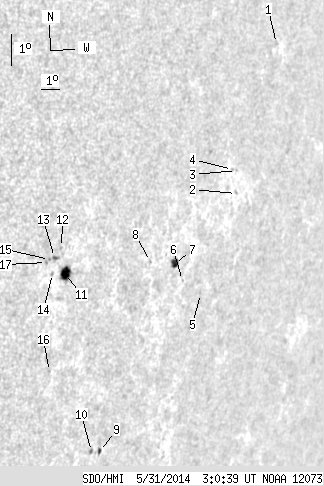

SDO HMI 2014-05-31 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.36 | 38.45 | 12.86 | 32.80 | -13.10 | 62.82 | 53.44 | 254.32 | 0.8137 | -140.2 | -84.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.73 | -5.89 | 69.83 | 60.44 | 263.68 | 0.8725 | -471.0 | -355.8 | |
| 0.00 | 1.17 | 0.00 | 1.15 | -10.52 | 68.51 | 59.12 | 258.25 | 0.8639 | 338.0 | 268.7 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -9.81 | 68.30 | 58.91 | 259.04 | 0.8615 | 300.0 | 272.3 | |
| 0.00 | 0.99 | 0.00 | 0.96 | -9.78 | 68.05 | 58.66 | 259.05 | 0.8593 | 427.0 | 338.5 | |
| 0.00 | 0.81 | 0.00 | 0.78 | -13.64 | 67.44 | 58.05 | 254.50 | 0.8578 | 143.0 | 120.0 | |
| 0.00 | 0.72 | 0.00 | 0.67 | -13.25 | 66.24 | 56.85 | 254.78 | 0.8467 | 293.0 | 264.9 | |
| 4.43 | 6.50 | 4.02 | 5.91 | -12.72 | 65.60 | 56.21 | 255.30 | 0.8402 | 596.5 | 392.8 | |
| 0.00 | 0.90 | 0.00 | 0.79 | -12.67 | 64.25 | 54.87 | 255.15 | 0.8276 | 613.0 | 516.6 | |
| 1.36 | 2.44 | 1.21 | 2.18 | -18.68 | 63.83 | 54.44 | 247.93 | 0.8338 | 317.8 | 268.4 | |
| 0.00 | 1.81 | 0.00 | 1.59 | -18.68 | 63.39 | 54.00 | 247.82 | 0.8298 | 572.0 | 504.0 | |
| 9.03 | 12.74 | 7.20 | 10.16 | -13.09 | 59.97 | 50.59 | 253.85 | 0.7857 | -635.2 | -259.8 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -12.28 | 59.56 | 50.17 | 254.79 | 0.7799 | -741.0 | -630.2 | |
| 0.54 | 2.80 | 0.43 | 2.20 | -12.60 | 59.30 | 49.91 | 254.34 | 0.7777 | -694.8 | -621.7 | |
| 0.00 | 1.26 | 0.00 | 0.99 | -13.09 | 59.34 | 49.95 | 253.71 | 0.7790 | -556.0 | -470.9 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -12.66 | 59.07 | 49.69 | 254.21 | 0.7754 | -713.0 | -671.9 | |
| 0.00 | 1.17 | 0.00 | 0.95 | -16.16 | 60.16 | 50.77 | 250.06 | 0.7937 | -402.0 | -270.8 | |
| 0.00 | 1.26 | 0.00 | 0.99 | -12.76 | 58.95 | 49.57 | 254.06 | 0.7743 | -785.0 | -704.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
