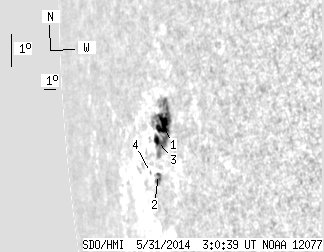

SDO HMI 2014-05-31 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.96 | 74.44 | 29.31 | 115.13 | -4.88 | 298.05 | -71.34 | 94.87 | 0.9488 | 472.3 | 251.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.18 | 67.39 | 21.71 | 103.78 | -4.63 | 298.26 | -71.13 | 94.62 | 0.9476 | 526.5 | 236.4 | |
| 0.90 | 6.78 | 1.45 | 10.90 | -6.15 | 297.42 | -71.96 | 96.20 | 0.9523 | 643.2 | 373.5 | |
| 3.88 | -1.00 | 6.15 | -1.00 | -5.11 | 297.64 | -71.74 | 95.12 | 0.9510 | 279.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.45 | -6.07 | 296.63 | -72.76 | 96.11 | 0.9564 | 231.0 | 256.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
