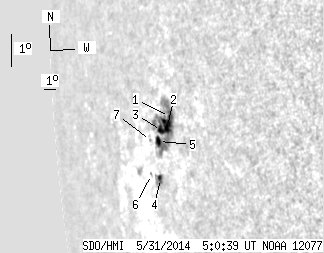

SDO HMI 2014-05-31 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.95 | 81.94 | 33.46 | 120.09 | -4.84 | 298.16 | -70.13 | 94.86 | 0.9419 | 477.8 | 189.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 72.28 | 3.83 | 105.28 | -4.30 | 298.78 | -69.51 | 94.30 | 0.9382 | 617.9 | 178.3 | |
| 9.85 | -1.00 | 14.12 | -1.00 | -4.58 | 298.54 | -69.75 | 94.59 | 0.9397 | 649.6 | 999999 | |
| 4.07 | -1.00 | 5.99 | -1.00 | -4.72 | 297.97 | -70.32 | 94.74 | 0.9431 | 275.5 | 999999 | |
| 2.53 | 8.04 | 3.83 | 12.25 | -6.18 | 297.47 | -70.82 | 96.28 | 0.9461 | 529.7 | 295.7 | |
| 3.79 | -1.00 | 5.69 | -1.00 | -5.05 | 297.60 | -70.68 | 95.08 | 0.9452 | 229.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 1.43 | -6.05 | 296.64 | -71.65 | 96.12 | 0.9506 | 303.0 | 258.9 | |
| 0.00 | 0.72 | 0.00 | 1.13 | -5.01 | 296.85 | -71.44 | 95.03 | 0.9494 | 117.0 | 56.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
