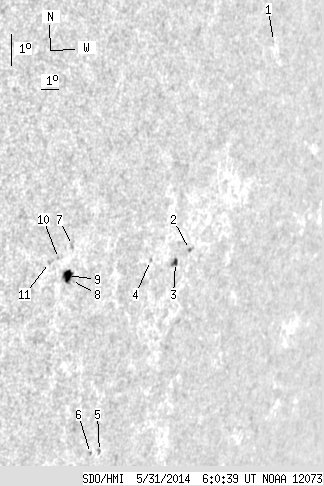

SDO HMI 2014-05-31 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.94 | 26.10 | 8.49 | 22.88 | -13.31 | 62.36 | 54.62 | 254.29 | 0.8255 | -170.3 | 34.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.77 | -5.83 | 69.91 | 62.17 | 263.82 | 0.8868 | -331.0 | -309.4 | |
| 0.36 | 1.36 | 0.35 | 1.32 | -12.28 | 66.43 | 58.69 | 256.15 | 0.8618 | 513.2 | 442.1 | |
| 1.81 | 4.52 | 1.72 | 4.30 | -12.69 | 65.74 | 58.00 | 255.58 | 0.8563 | 560.3 | 429.5 | |
| 0.00 | 1.17 | 0.00 | 1.08 | -12.64 | 64.27 | 56.53 | 255.43 | 0.8431 | 570.0 | 467.5 | |
| 0.00 | 1.81 | 0.00 | 1.68 | -18.68 | 63.89 | 56.15 | 248.30 | 0.8488 | 461.0 | 342.6 | |
| 0.00 | 1.17 | 0.00 | 1.08 | -18.75 | 63.41 | 55.67 | 248.11 | 0.8448 | 554.0 | 518.0 | |
| 0.00 | 2.35 | 0.00 | 1.93 | -12.22 | 59.94 | 52.20 | 255.24 | 0.8009 | -569.0 | -474.0 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -13.30 | 60.21 | 52.47 | 253.94 | 0.8053 | 134.0 | 133.1 | |
| 7.77 | 10.39 | 6.42 | 8.59 | -13.15 | 59.96 | 52.22 | 254.09 | 0.8025 | -644.7 | -310.7 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -12.63 | 59.35 | 51.61 | 254.62 | 0.7955 | -573.0 | -555.1 | |
| 0.00 | 1.08 | 0.00 | 0.87 | -12.75 | 58.93 | 51.19 | 254.38 | 0.7914 | -743.0 | -648.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
