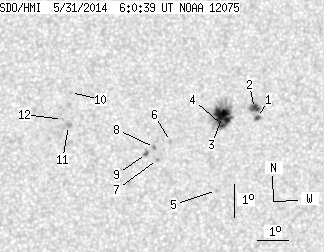

SDO HMI 2014-05-31 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.28 | 78.23 | 15.39 | 41.04 | -9.06 | 25.07 | 17.33 | 243.66 | 0.3296 | 808.3 | 480.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 3.52 | 0.72 | 1.86 | -8.97 | 26.53 | 18.79 | 245.76 | 0.3504 | 838.5 | 700.8 | |
| 4.61 | 7.86 | 2.43 | 4.15 | -8.69 | 26.42 | 18.68 | 246.38 | 0.3470 | 1033.5 | 755.1 | |
| 20.24 | 54.21 | 10.63 | 28.46 | -8.94 | 25.39 | 17.65 | 244.53 | 0.3333 | 1163.3 | 543.6 | |
| 2.35 | -3.00 | 1.23 | -3.00 | -9.21 | 25.41 | 17.67 | 243.79 | 0.3353 | 844.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.22 | 25.33 | 17.58 | 238.45 | 0.3492 | 757.0 | 587.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.71 | 23.76 | 16.02 | 240.18 | 0.3148 | 812.0 | 695.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -10.27 | 23.37 | 15.63 | 238.03 | 0.3138 | 849.0 | 733.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -9.90 | 23.25 | 15.51 | 238.88 | 0.3091 | 947.0 | 725.4 | |
| 0.72 | 3.07 | 0.38 | 1.60 | -10.08 | 23.01 | 15.27 | 237.96 | 0.3071 | 991.9 | 755.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -8.21 | 20.52 | 12.78 | 239.33 | 0.2557 | -795.0 | -617.2 | |
| 0.00 | 2.53 | 0.00 | 1.30 | -9.23 | 20.49 | 12.75 | 235.93 | 0.2642 | -837.0 | -749.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -9.04 | 20.29 | 12.55 | 236.12 | 0.2597 | -716.0 | -504.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
