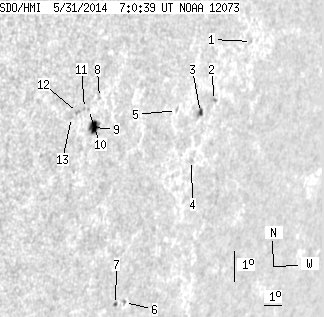

SDO HMI 2014-05-31 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.03 | 30.45 | 8.73 | 27.02 | -13.64 | 62.24 | 55.05 | 253.98 | 0.8299 | -195.3 | -25.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.56 | -10.45 | 68.11 | 60.92 | 258.49 | 0.8790 | 416.0 | 368.3 | |
| 0.00 | 1.08 | 0.00 | 1.07 | -12.30 | 66.44 | 59.24 | 256.19 | 0.8666 | 547.0 | 434.0 | |
| 2.08 | 4.52 | 2.01 | 4.37 | -12.68 | 65.73 | 58.53 | 255.66 | 0.8609 | 499.1 | 443.7 | |
| 0.00 | 2.17 | 0.00 | 2.11 | -14.18 | 65.77 | 58.58 | 253.94 | 0.8630 | 78.0 | 118.5 | |
| 0.00 | 1.08 | 0.00 | 1.01 | -12.63 | 64.30 | 57.10 | 255.52 | 0.8483 | 497.0 | 393.0 | |
| 0.00 | 1.81 | 0.00 | 1.71 | -18.70 | 63.88 | 56.69 | 248.39 | 0.8535 | 470.0 | 378.0 | |
| 0.72 | 1.72 | 0.67 | 1.60 | -18.77 | 63.39 | 56.20 | 248.20 | 0.8494 | 526.6 | 418.5 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -12.27 | 59.98 | 52.78 | 255.27 | 0.8068 | -543.0 | -399.5 | |
| 7.23 | 10.84 | 6.05 | 9.08 | -13.20 | 59.94 | 52.75 | 254.12 | 0.8079 | -643.1 | -289.4 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -12.65 | 59.52 | 52.33 | 254.72 | 0.8028 | -613.0 | -544.9 | |
| 0.00 | 0.99 | 0.00 | 0.82 | -12.62 | 59.31 | 52.11 | 254.72 | 0.8006 | -564.0 | -509.9 | |
| 0.00 | 1.90 | 0.00 | 1.55 | -12.74 | 58.99 | 51.79 | 254.50 | 0.7976 | -728.0 | -633.2 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -12.90 | 58.73 | 51.54 | 254.26 | 0.7952 | -683.0 | -588.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
