SDO HMI 2014-05-31 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.52 | 87.64 | 25.82 | 122.10 | -4.89 | 297.92 | -69.27 | 94.94 | 0.9368 | 438.1 | 232.0 | |
|
previous
or next observation for the same group /

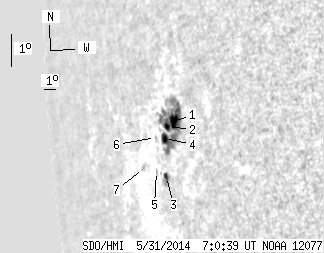

back to the solar disc SDO HMI 2014-05-31 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.77 | 76.26 | 10.58 | 105.25 | -4.52 | 298.50 | -68.70 | 94.55 | 0.9333 | 671.0 | 239.1 | |
| 3.16 | -1.00 | 4.43 | -1.00 | -4.67 | 297.95 | -69.24 | 94.70 | 0.9367 | 228.3 | 999999 | |
| 2.44 | 6.69 | 3.50 | 9.62 | -6.19 | 297.46 | -69.73 | 96.32 | 0.9398 | 512.5 | 308.4 | |
| 5.15 | -1.00 | 7.31 | -1.00 | -5.03 | 297.60 | -69.59 | 95.08 | 0.9388 | 302.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.88 | -6.03 | 296.60 | -70.60 | 96.12 | 0.9448 | 371.0 | 266.1 | |
| 0.00 | 0.99 | 0.00 | 1.47 | -4.99 | 296.80 | -70.40 | 95.02 | 0.9435 | 64.0 | 4.9 | |
| 0.00 | 2.44 | 0.00 | 3.88 | -5.92 | 295.38 | -71.81 | 95.98 | 0.9515 | 78.0 | 28.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
