SDO HMI 2014-05-31 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.70 | 91.34 | 25.43 | 123.75 | -4.81 | 298.03 | -68.61 | 94.86 | 0.9327 | 398.5 | 217.5 | |
|
previous
or next observation for the same group /

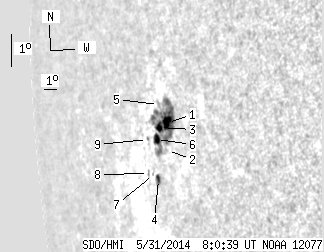

back to the solar disc SDO HMI 2014-05-31 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.68 | 79.42 | 10.19 | 107.02 | -4.50 | 298.62 | -68.02 | 94.54 | 0.9290 | 685.5 | 220.5 | |
| 0.00 | 0.63 | 0.00 | 0.84 | -5.35 | 298.44 | -68.21 | 95.46 | 0.9303 | 177.0 | 190.6 | |
| 3.70 | -1.00 | 5.07 | -1.00 | -4.64 | 297.92 | -68.72 | 94.68 | 0.9334 | 195.5 | 999999 | |
| 2.44 | 5.06 | 3.41 | 7.09 | -6.23 | 297.43 | -69.21 | 96.37 | 0.9367 | 543.9 | 402.6 | |
| 0.00 | 2.26 | 0.00 | 3.08 | -3.94 | 297.98 | -68.67 | 93.93 | 0.9330 | -152.0 | -110.9 | |
| 4.88 | -1.00 | 6.76 | -1.00 | -5.00 | 297.58 | -69.06 | 95.07 | 0.9356 | 221.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.67 | -6.07 | 297.04 | -69.61 | 96.19 | 0.9390 | 357.0 | 374.2 | |
| 0.00 | 1.54 | 0.00 | 2.23 | -6.03 | 296.60 | -70.04 | 96.14 | 0.9416 | 348.0 | 289.2 | |
| 0.00 | 1.26 | 0.00 | 1.82 | -4.99 | 296.79 | -69.85 | 95.04 | 0.9404 | 70.0 | 39.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
