SDO HMI 2014-05-31 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.59 | 60.99 | 12.59 | 32.45 | -8.97 | 24.70 | 19.69 | 246.20 | 0.3649 | 711.5 | 411.5 | |
|
previous
or next observation for the same group /

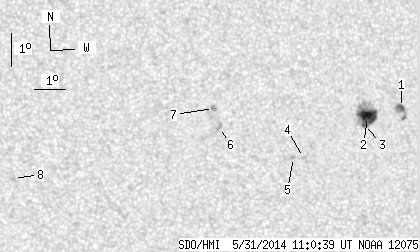

back to the solar disc SDO HMI 2014-05-31 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 10.93 | 1.07 | 5.88 | -8.59 | 26.52 | 21.52 | 249.25 | 0.3895 | 963.3 | 806.3 | |
| 19.79 | 38.85 | 10.56 | 20.73 | -8.87 | 25.42 | 20.42 | 247.59 | 0.3744 | 1104.1 | 663.0 | |
| 1.81 | -2.00 | 0.96 | -2.00 | -9.12 | 25.33 | 20.33 | 246.89 | 0.3746 | 846.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -10.14 | 23.40 | 18.40 | 242.19 | 0.3527 | 770.0 | 622.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -10.14 | 23.07 | 18.07 | 241.78 | 0.3480 | 775.0 | 690.0 | |
| 0.00 | 3.52 | 0.00 | 1.83 | -9.22 | 20.64 | 15.64 | 240.94 | 0.3058 | -767.0 | -694.9 | |
| 0.00 | 2.44 | 0.00 | 1.27 | -8.64 | 20.43 | 15.42 | 242.34 | 0.2982 | -946.0 | -830.7 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -10.80 | 14.19 | 9.18 | 221.89 | 0.2359 | -819.0 | -665.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
