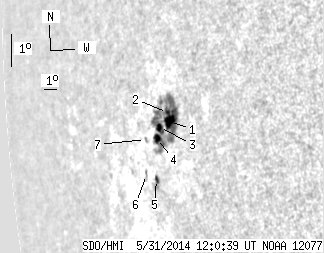

SDO HMI 2014-05-31 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.69 | 106.24 | 26.66 | 130.50 | -4.71 | 298.20 | -66.25 | 94.81 | 0.9171 | 481.0 | 230.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.94 | 95.67 | 11.98 | 116.85 | -4.43 | 298.74 | -65.72 | 94.52 | 0.9134 | 666.3 | 225.5 | |
| 1.54 | -1.00 | 1.86 | -1.00 | -4.15 | 298.63 | -65.82 | 94.21 | 0.9140 | 447.8 | 999999 | |
| 3.52 | -1.00 | 4.39 | -1.00 | -4.60 | 297.94 | -66.51 | 94.69 | 0.9189 | 248.0 | 999999 | |
| 4.70 | -1.00 | 5.90 | -1.00 | -4.93 | 297.72 | -66.73 | 95.05 | 0.9205 | 365.7 | 999999 | |
| 1.99 | 6.14 | 2.53 | 7.84 | -6.18 | 297.35 | -67.10 | 96.40 | 0.9232 | 500.8 | 330.2 | |
| 0.00 | 2.71 | 0.00 | 3.57 | -6.02 | 296.58 | -67.87 | 96.20 | 0.9282 | 302.0 | 249.7 | |
| 0.00 | 1.72 | 0.00 | 2.24 | -4.95 | 296.76 | -67.69 | 95.05 | 0.9269 | 154.0 | 163.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
