SDO HMI 2014-05-31 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.97 | 60.14 | 9.82 | 32.70 | -8.97 | 24.62 | 22.93 | 249.16 | 0.4131 | 543.5 | 369.0 | |
|
previous
or next observation for the same group /

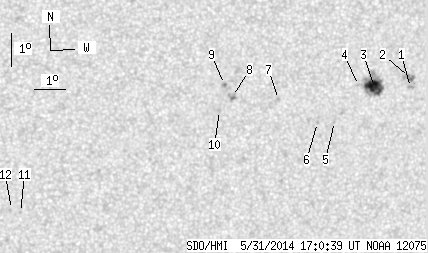

back to the solar disc SDO HMI 2014-05-31 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.44 | 0.00 | 1.35 | -8.85 | 26.65 | 24.95 | 251.15 | 0.4423 | 849.0 | 647.7 | |
| 0.00 | 7.50 | 0.00 | 4.13 | -8.54 | 26.59 | 24.90 | 251.79 | 0.4401 | 891.0 | 742.1 | |
| 17.97 | 35.85 | 9.82 | 19.58 | -8.82 | 25.43 | 23.74 | 250.39 | 0.4240 | 1047.7 | 630.3 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -8.79 | 24.89 | 23.20 | 250.06 | 0.4158 | 813.0 | 574.0 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -9.90 | 24.16 | 22.47 | 246.94 | 0.4109 | 756.0 | 640.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -9.94 | 23.60 | 21.91 | 246.37 | 0.4028 | 885.0 | 743.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -9.23 | 22.26 | 20.57 | 246.81 | 0.3789 | 750.0 | 602.3 | |
| 0.00 | 4.79 | 0.00 | 2.54 | -9.15 | 20.75 | 19.06 | 245.50 | 0.3558 | -822.0 | -710.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -8.78 | 20.47 | 18.78 | 246.16 | 0.3493 | -989.0 | -898.4 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -9.58 | 20.35 | 18.66 | 243.93 | 0.3527 | -773.0 | -583.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -12.74 | 14.12 | 12.43 | 225.21 | 0.2970 | -826.0 | -650.5 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -12.65 | 13.83 | 12.13 | 224.78 | 0.2925 | -506.0 | -552.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
