SDO HMI 2014-05-31 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.76 | 129.85 | 26.23 | 143.71 | -4.63 | 298.25 | -63.44 | 94.81 | 0.8965 | 466.4 | 252.4 | |
|
previous
or next observation for the same group /

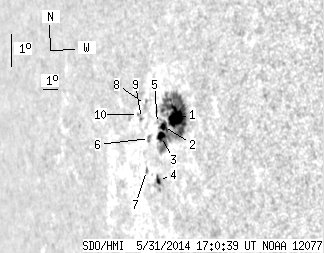

back to the solar disc SDO HMI 2014-05-31 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.73 | 109.54 | 14.91 | 120.11 | -4.34 | 298.86 | -62.83 | 94.50 | 0.8917 | 728.5 | 302.2 | |
| 2.80 | -1.00 | 3.13 | -1.00 | -4.57 | 298.01 | -63.69 | 94.74 | 0.8984 | 424.5 | 999999 | |
| 5.15 | -1.00 | 5.81 | -1.00 | -4.87 | 297.81 | -63.88 | 95.07 | 0.8999 | 437.6 | 999999 | |
| 2.08 | 8.31 | 2.38 | 9.56 | -6.21 | 297.33 | -64.36 | 96.54 | 0.9039 | 566.6 | 313.1 | |
| 0.00 | 1.35 | 0.00 | 1.54 | -4.47 | 297.60 | -64.09 | 94.62 | 0.9015 | -362.0 | -318.1 | |
| 0.00 | 2.71 | 0.00 | 3.15 | -4.93 | 296.95 | -64.74 | 95.10 | 0.9064 | 356.0 | 239.4 | |
| 0.00 | 2.26 | 0.00 | 2.67 | -5.90 | 296.53 | -65.16 | 96.16 | 0.9097 | 344.0 | 274.8 | |
| 0.00 | 3.16 | 0.00 | 3.68 | -3.89 | 296.84 | -64.85 | 93.95 | 0.9071 | -405.0 | -359.7 | |
| 0.00 | 1.35 | 0.00 | 1.60 | -4.31 | 296.48 | -65.21 | 94.41 | 0.9097 | -522.0 | -535.3 | |
| 0.00 | 1.17 | 0.00 | 1.40 | -4.18 | 296.28 | -65.41 | 94.26 | 0.9112 | -461.0 | -362.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
