SDO HMI 2014-05-31 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.96 | 50.83 | 10.41 | 27.70 | -8.92 | 24.39 | 23.25 | 249.65 | 0.4173 | 667.5 | 167.2 | |
|
previous
or next observation for the same group /

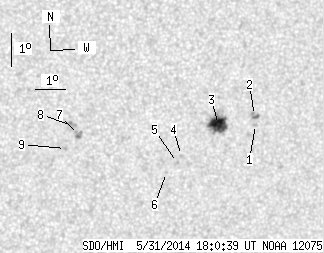

back to the solar disc SDO HMI 2014-05-31 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.05 | -8.81 | 26.67 | 25.53 | 251.59 | 0.4507 | 759.0 | 637.6 | |
| 0.00 | 4.42 | 0.00 | 2.45 | -8.54 | 26.61 | 25.47 | 252.15 | 0.4487 | 857.0 | 767.0 | |
| 18.96 | 29.71 | 10.41 | 16.30 | -8.82 | 25.41 | 24.27 | 250.76 | 0.4320 | 1055.7 | 675.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -9.77 | 24.23 | 23.10 | 247.75 | 0.4194 | 655.0 | 459.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -9.99 | 24.11 | 22.98 | 247.17 | 0.4189 | 763.0 | 633.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -10.30 | 23.77 | 22.63 | 246.18 | 0.4156 | 667.0 | 545.9 | |
| 0.00 | 5.42 | 0.00 | 2.88 | -9.14 | 20.78 | 19.64 | 246.12 | 0.3646 | -795.0 | -714.9 | |
| 0.00 | 5.24 | 0.00 | 2.78 | -8.86 | 20.54 | 19.40 | 246.58 | 0.3592 | -823.0 | -708.4 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -9.57 | 20.38 | 19.24 | 244.60 | 0.3614 | -784.0 | -596.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
