SDO HMI 2014-05-31 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.97 | 13.54 | 5.01 | 13.59 | -13.22 | 59.76 | 59.74 | 255.18 | 0.8716 | -348.9 | -400.6 | |
|
previous
or next observation for the same group /

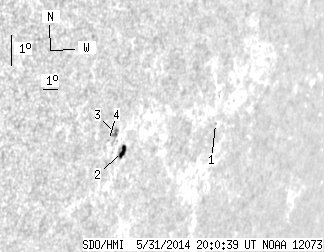

back to the solar disc SDO HMI 2014-05-31 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.33 | -12.49 | 65.89 | 65.86 | 256.66 | 0.9173 | 185.0 | 234.7 | |
| 4.97 | 8.22 | 5.01 | 8.28 | -13.43 | 59.88 | 59.86 | 254.96 | 0.8729 | -344.3 | -268.6 | |
| 0.00 | 4.06 | 0.00 | 4.01 | -12.87 | 59.23 | 59.20 | 255.51 | 0.8669 | -643.0 | -530.3 | |
| 0.00 | 0.99 | 0.00 | 0.97 | -13.09 | 58.89 | 58.86 | 255.21 | 0.8642 | -612.0 | -527.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
