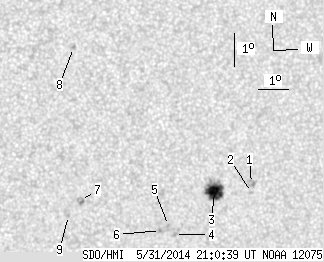

SDO HMI 2014-05-31 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.97 | 48.60 | 10.55 | 26.89 | -8.79 | 24.74 | 25.27 | 251.41 | 0.4469 | 662.2 | 340.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-31 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.05 | 0.00 | 3.40 | -8.55 | 26.63 | 27.16 | 253.05 | 0.4739 | 592.0 | 629.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -8.83 | 26.65 | 27.18 | 252.50 | 0.4753 | 686.0 | 502.6 | |
| 18.97 | 28.90 | 10.55 | 16.07 | -8.80 | 25.38 | 25.91 | 251.82 | 0.4563 | 1018.6 | 711.9 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -10.13 | 24.12 | 24.65 | 248.15 | 0.4441 | 728.0 | 649.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -9.85 | 23.89 | 24.42 | 248.58 | 0.4394 | 863.0 | 621.9 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -10.01 | 23.63 | 24.16 | 248.05 | 0.4364 | 819.0 | 721.1 | |
| 0.00 | 4.61 | 0.00 | 2.48 | -9.09 | 20.89 | 21.42 | 247.90 | 0.3909 | -634.0 | -685.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -4.42 | 20.45 | 20.98 | 259.63 | 0.3645 | -839.0 | -692.9 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -9.56 | 20.52 | 21.05 | 246.45 | 0.3881 | -677.0 | -511.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
