SDO HMI 2014-05-31 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.59 | 144.42 | 37.37 | 142.90 | -4.44 | 298.45 | -59.91 | 94.72 | 0.8674 | 520.1 | 305.6 | |
|
previous
or next observation for the same group /

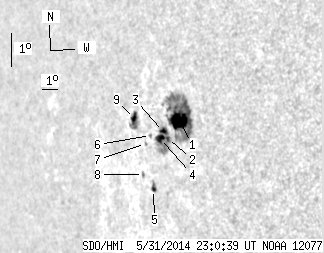

back to the solar disc SDO HMI 2014-05-31 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.96 | 91.50 | 20.35 | 88.81 | -4.24 | 299.09 | -59.27 | 94.51 | 0.8619 | 830.1 | 372.6 | |
| 1.72 | 31.34 | 1.71 | 31.43 | -4.78 | 298.29 | -60.07 | 95.11 | 0.8691 | 672.9 | 322.4 | |
| 2.98 | -2.00 | 2.98 | -2.00 | -4.57 | 298.07 | -60.29 | 94.85 | 0.8709 | 510.8 | 999999 | |
| 4.97 | -2.00 | 5.01 | -2.00 | -4.78 | 297.85 | -60.51 | 95.09 | 0.8728 | 529.9 | 999999 | |
| 1.72 | 4.79 | 1.77 | 4.94 | -6.33 | 297.13 | -61.23 | 96.83 | 0.8794 | 598.1 | 524.6 | |
| 0.00 | 1.08 | 0.00 | 1.11 | -4.68 | 297.24 | -61.12 | 94.95 | 0.8780 | 326.0 | 256.2 | |
| 0.00 | 1.35 | 0.00 | 1.41 | -4.92 | 296.88 | -61.48 | 95.21 | 0.8810 | 215.0 | 196.8 | |
| 0.00 | 2.17 | 0.00 | 2.28 | -5.86 | 296.58 | -61.78 | 96.27 | 0.8837 | 463.0 | 393.0 | |
| 5.24 | 12.19 | 5.55 | 12.92 | -4.15 | 296.28 | -62.08 | 94.32 | 0.8857 | -592.4 | -459.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
