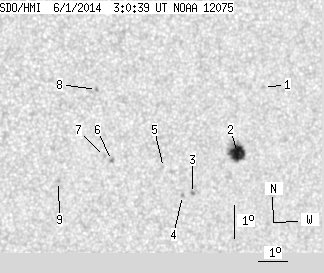

SDO HMI 2014-06-01 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.35 | 38.32 | 9.95 | 21.78 | -8.78 | 24.54 | 28.39 | 253.07 | 0.4928 | 608.3 | 342.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.83 | -6.78 | 26.17 | 30.01 | 257.74 | 0.5103 | 674.0 | 511.6 | |
| 17.35 | 27.65 | 9.95 | 15.84 | -8.78 | 25.40 | 29.25 | 253.56 | 0.5054 | 953.1 | 603.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -10.05 | 23.93 | 27.78 | 250.32 | 0.4894 | 833.0 | 781.3 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.11 | 23.59 | 27.44 | 249.99 | 0.4847 | 872.0 | 723.8 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -9.25 | 22.86 | 26.70 | 251.27 | 0.4702 | 642.0 | 493.9 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -9.04 | 21.06 | 24.91 | 250.58 | 0.4428 | -819.0 | -710.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -8.92 | 20.81 | 24.66 | 250.69 | 0.4386 | -809.0 | -704.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -6.87 | 20.42 | 24.26 | 255.05 | 0.4240 | 809.0 | 685.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -9.69 | 19.32 | 23.16 | 247.87 | 0.4203 | -766.0 | -622.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
