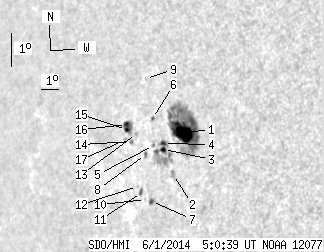

SDO HMI 2014-06-01 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.87 | 165.21 | 33.15 | 148.38 | -4.33 | 298.58 | -56.47 | 94.76 | 0.8361 | 477.8 | 285.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.67 | 107.46 | 22.67 | 94.74 | -4.16 | 299.26 | -55.80 | 94.58 | 0.8297 | 807.5 | 352.5 | |
| 0.00 | 3.98 | 0.00 | 3.58 | -5.44 | 298.54 | -56.51 | 96.08 | 0.8371 | 582.0 | 481.2 | |
| 2.35 | 27.47 | 2.14 | 25.06 | -4.67 | 298.09 | -56.97 | 95.14 | 0.8411 | 642.0 | 382.3 | |
| 1.81 | -3.00 | 1.64 | -3.00 | -4.48 | 298.11 | -56.95 | 94.92 | 0.8408 | 659.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.34 | -4.54 | 297.54 | -57.52 | 94.96 | 0.8462 | 371.0 | 267.9 | |
| 0.54 | 1.54 | 0.50 | 1.42 | -3.72 | 297.57 | -57.48 | 93.99 | 0.8456 | 234.2 | 151.1 | |
| 1.17 | 2.71 | 1.10 | 2.54 | -6.25 | 297.16 | -57.90 | 96.96 | 0.8504 | 707.5 | 584.8 | |
| 0.63 | 1.72 | 0.59 | 1.61 | -4.81 | 297.04 | -58.02 | 95.26 | 0.8508 | 251.4 | 211.2 | |
| 0.00 | 0.63 | 0.00 | 0.59 | -2.49 | 297.28 | -57.77 | 92.53 | 0.8480 | -240.0 | -276.3 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -6.18 | 296.82 | -58.23 | 96.86 | 0.8534 | 287.0 | 282.7 | |
| 0.99 | 2.62 | 0.94 | 2.49 | -5.97 | 296.62 | -58.43 | 96.59 | 0.8551 | 410.6 | 352.1 | |
| 0.00 | 0.63 | 0.00 | 0.60 | -5.78 | 296.42 | -58.64 | 96.37 | 0.8568 | 372.0 | 330.4 | |
| 0.00 | 1.08 | 0.00 | 1.03 | -4.16 | 296.60 | -58.46 | 94.48 | 0.8547 | -405.0 | -387.8 | |
| 0.36 | 1.81 | 0.35 | 1.73 | -4.40 | 296.27 | -58.78 | 94.75 | 0.8577 | -694.2 | -614.6 | |
| 1.63 | 10.30 | 1.57 | 9.90 | -4.03 | 296.02 | -59.04 | 94.31 | 0.8598 | -550.6 | -406.9 | |
| 1.72 | -15.00 | 1.65 | -15.00 | -3.88 | 296.04 | -59.02 | 94.13 | 0.8596 | -508.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.49 | -4.34 | 295.92 | -59.13 | 94.66 | 0.8608 | -613.0 | -428.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
