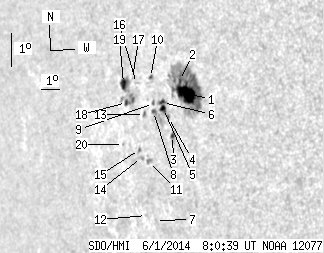

SDO HMI 2014-06-01 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.04 | 182.03 | 33.72 | 157.12 | -4.35 | 298.48 | -54.93 | 94.86 | 0.8210 | 450.4 | 218.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.96 | 115.96 | 19.38 | 97.92 | -4.20 | 299.42 | -53.99 | 94.72 | 0.8117 | 842.4 | 349.0 | |
| 1.08 | -1.00 | 0.92 | -1.00 | -3.80 | 299.09 | -54.32 | 94.21 | 0.8149 | 567.8 | 999999 | |
| 1.36 | 3.62 | 1.17 | 3.12 | -5.47 | 298.53 | -54.89 | 96.23 | 0.8213 | 628.9 | 500.9 | |
| 0.00 | 1.63 | 0.00 | 1.41 | -4.92 | 298.39 | -55.03 | 95.55 | 0.8224 | 577.0 | 515.4 | |
| 3.07 | 8.86 | 2.68 | 7.72 | -4.64 | 298.15 | -55.26 | 95.20 | 0.8246 | 636.9 | 476.0 | |
| 1.81 | -5.00 | 1.58 | -5.00 | -4.46 | 298.12 | -55.29 | 94.98 | 0.8249 | 647.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.65 | -8.06 | 297.14 | -56.27 | 99.25 | 0.8364 | -320.0 | -258.2 | |
| 0.99 | 9.40 | 0.88 | 8.25 | -4.73 | 297.60 | -55.82 | 95.28 | 0.8301 | 437.0 | 298.6 | |
| 0.45 | 1.72 | 0.40 | 1.52 | -4.48 | 297.63 | -55.79 | 94.99 | 0.8297 | 282.2 | 170.5 | |
| 0.72 | 1.72 | 0.64 | 1.52 | -3.69 | 297.55 | -55.86 | 94.02 | 0.8302 | 379.5 | 235.2 | |
| 0.00 | 2.89 | 0.00 | 2.59 | -6.25 | 297.15 | -56.26 | 97.08 | 0.8351 | 695.0 | 590.9 | |
| 0.00 | 0.90 | 0.00 | 0.82 | -7.90 | 296.67 | -56.74 | 99.02 | 0.8407 | -429.0 | -365.2 | |
| 0.00 | 2.44 | 0.00 | 2.18 | -4.81 | 297.09 | -56.32 | 95.36 | 0.8350 | 226.0 | 167.2 | |
| 0.00 | 1.99 | 0.00 | 1.80 | -6.13 | 296.73 | -56.68 | 96.90 | 0.8391 | 424.0 | 311.1 | |
| 0.00 | 1.54 | 0.00 | 1.39 | -5.88 | 296.66 | -56.76 | 96.61 | 0.8396 | 526.0 | 463.3 | |
| 0.00 | 0.72 | 0.00 | 0.65 | -3.86 | 296.76 | -56.66 | 94.20 | 0.8378 | 310.0 | 176.0 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -3.68 | 296.55 | -56.86 | 93.98 | 0.8397 | 198.0 | 176.0 | |
| 1.54 | 26.84 | 1.41 | 24.57 | -4.44 | 296.13 | -57.29 | 94.86 | 0.8440 | -690.6 | -471.2 | |
| 5.06 | -18.00 | 4.66 | -18.00 | -3.86 | 296.02 | -57.39 | 94.17 | 0.8447 | -484.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.76 | -5.72 | 295.77 | -57.64 | 96.36 | 0.8478 | -170.0 | -251.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
