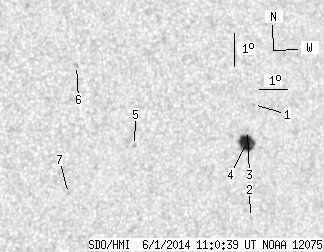

SDO HMI 2014-06-01 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.80 | 28.91 | 10.70 | 17.22 | -8.65 | 24.55 | 32.78 | 255.21 | 0.5554 | 535.1 | 26.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.65 | -7.58 | 25.53 | 33.76 | 257.42 | 0.5665 | -105.0 | -152.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -11.06 | 25.79 | 34.03 | 251.58 | 0.5810 | 601.0 | 485.8 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -8.38 | 25.38 | 33.61 | 255.99 | 0.5666 | 530.0 | 465.7 | |
| 17.80 | 21.42 | 10.70 | 12.87 | -8.75 | 25.38 | 33.61 | 255.35 | 0.5676 | 937.9 | 634.5 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -8.86 | 21.34 | 29.57 | 253.49 | 0.5105 | -644.0 | -527.7 | |
| 0.00 | 2.17 | 0.00 | 1.22 | -6.41 | 19.13 | 27.36 | 257.41 | 0.4699 | -767.0 | -652.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -10.34 | 19.15 | 27.38 | 249.41 | 0.4853 | -714.0 | -605.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
