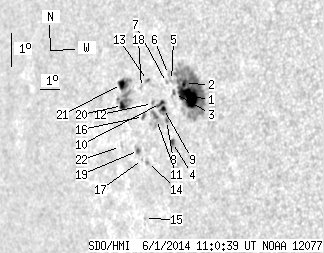

SDO HMI 2014-06-01 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.55 | 183.36 | 36.10 | 152.06 | -4.32 | 298.47 | -53.30 | 94.91 | 0.8045 | 444.4 | 217.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.39 | 104.38 | 20.57 | 84.40 | -4.21 | 299.57 | -52.20 | 94.83 | 0.7931 | 857.4 | 391.9 | |
| 2.17 | -1.00 | 1.76 | -1.00 | -3.81 | 299.35 | -52.42 | 94.32 | 0.7952 | 596.3 | 999999 | |
| 0.45 | 2.44 | 0.37 | 2.01 | -4.11 | 298.82 | -52.95 | 94.67 | 0.8009 | 312.4 | 239.6 | |
| 1.45 | 3.34 | 1.20 | 2.78 | -5.60 | 298.54 | -53.23 | 96.52 | 0.8046 | 666.1 | 489.1 | |
| 0.00 | 1.63 | 0.00 | 1.34 | -3.71 | 298.70 | -53.07 | 94.17 | 0.8020 | 245.0 | 210.6 | |
| 0.00 | 1.99 | 0.00 | 1.64 | -3.53 | 298.56 | -53.20 | 93.93 | 0.8033 | 215.0 | 62.5 | |
| 0.00 | 1.17 | 0.00 | 0.97 | -3.77 | 298.44 | -53.33 | 94.23 | 0.8047 | 210.0 | 145.8 | |
| 0.00 | 1.90 | 0.00 | 1.58 | -4.93 | 298.32 | -53.45 | 95.66 | 0.8065 | 608.0 | 525.4 | |
| 2.08 | 10.66 | 1.74 | 8.92 | -4.56 | 298.21 | -53.56 | 95.20 | 0.8075 | 680.8 | 568.9 | |
| 2.08 | -9.00 | 1.74 | -9.00 | -4.41 | 298.07 | -53.70 | 95.00 | 0.8088 | 575.2 | 999999 | |
| 0.00 | 9.67 | 0.00 | 8.16 | -4.89 | 297.80 | -53.96 | 95.59 | 0.8117 | 609.0 | 325.8 | |
| 0.00 | 1.90 | 0.00 | 1.61 | -4.40 | 297.65 | -54.12 | 94.98 | 0.8131 | 324.0 | 232.7 | |
| 0.36 | 1.90 | 0.31 | 1.61 | -3.70 | 297.46 | -54.31 | 94.10 | 0.8147 | 433.2 | 316.8 | |
| 0.00 | 1.90 | 0.00 | 1.63 | -6.20 | 297.15 | -54.62 | 97.15 | 0.8191 | 701.0 | 611.0 | |
| 0.00 | 0.72 | 0.00 | 0.63 | -7.91 | 296.68 | -55.09 | 99.19 | 0.8249 | -492.0 | -417.1 | |
| 0.90 | 2.35 | 0.78 | 2.01 | -4.79 | 297.13 | -54.64 | 95.43 | 0.8185 | 263.6 | 170.5 | |
| 0.00 | 0.63 | 0.00 | 0.55 | -6.11 | 296.90 | -54.87 | 97.02 | 0.8215 | 342.0 | 341.7 | |
| 0.00 | 1.81 | 0.00 | 1.55 | -3.91 | 297.12 | -54.65 | 94.35 | 0.8182 | 68.0 | 91.1 | |
| 0.99 | 3.07 | 0.86 | 2.67 | -5.83 | 296.72 | -55.04 | 96.67 | 0.8231 | 624.5 | 495.7 | |
| 3.25 | 31.18 | 2.87 | 27.36 | -4.45 | 296.04 | -55.73 | 94.95 | 0.8291 | -751.0 | -489.8 | |
| 4.43 | -20.00 | 3.90 | -20.00 | -3.81 | 296.06 | -55.71 | 94.18 | 0.8287 | -463.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.64 | -5.70 | 295.77 | -56.00 | 96.44 | 0.8323 | -454.0 | -445.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
