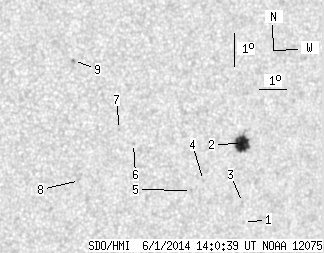

SDO HMI 2014-06-01 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.08 | 30.98 | 10.46 | 18.84 | -8.86 | 24.70 | 34.58 | 255.48 | 0.5812 | 526.3 | 262.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.56 | -11.17 | 25.75 | 35.63 | 252.06 | 0.6029 | 593.0 | 486.8 | |
| 17.08 | 22.95 | 10.46 | 14.06 | -8.73 | 25.41 | 35.29 | 255.94 | 0.5908 | 931.9 | 587.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -10.55 | 25.62 | 35.50 | 253.02 | 0.5992 | 659.0 | 451.9 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -9.88 | 24.07 | 33.95 | 253.53 | 0.5759 | 731.0 | 577.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -10.19 | 23.66 | 33.54 | 252.84 | 0.5713 | 758.0 | 583.7 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -8.75 | 21.39 | 31.27 | 254.43 | 0.5346 | -640.0 | -533.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -8.32 | 20.85 | 30.73 | 255.00 | 0.5255 | -706.0 | -557.6 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -9.90 | 19.57 | 29.45 | 251.45 | 0.5129 | -598.0 | -567.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -6.22 | 19.07 | 28.95 | 258.39 | 0.4932 | -829.0 | -677.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
