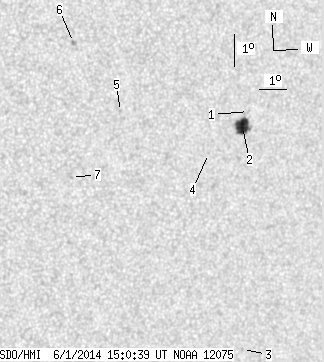

SDO HMI 2014-06-01 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.63 | 28.54 | 9.64 | 17.45 | -8.84 | 24.52 | 34.96 | 255.66 | 0.5865 | 460.5 | 48.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.56 | -8.30 | 25.56 | 36.00 | 256.87 | 0.5994 | 555.0 | 416.7 | |
| 15.63 | 21.68 | 9.64 | 13.38 | -8.76 | 25.38 | 35.82 | 256.06 | 0.5982 | 932.0 | 553.8 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -15.69 | 26.49 | 36.92 | 245.63 | 0.6372 | -634.0 | -504.7 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -9.60 | 24.19 | 34.63 | 254.26 | 0.5843 | 615.0 | 584.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -8.32 | 20.83 | 31.27 | 255.21 | 0.5332 | -741.0 | -589.1 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -6.22 | 19.00 | 29.44 | 258.56 | 0.5005 | -815.0 | -655.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -10.36 | 19.27 | 29.71 | 250.72 | 0.5185 | -762.0 | -617.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
