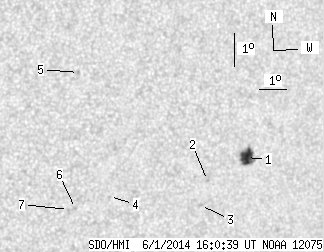

SDO HMI 2014-06-01 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.18 | 26.10 | 8.81 | 16.03 | -8.91 | 24.31 | 35.30 | 255.59 | 0.5913 | 459.4 | 204.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.18 | 19.15 | 8.81 | 11.90 | -8.76 | 25.36 | 36.35 | 256.22 | 0.6054 | 934.4 | 591.4 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -9.47 | 23.96 | 34.95 | 254.59 | 0.5883 | 724.0 | 669.2 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -10.24 | 23.79 | 34.78 | 253.24 | 0.5884 | 710.0 | 571.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -9.98 | 20.40 | 31.39 | 252.25 | 0.5407 | -487.0 | -448.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.18 | 18.98 | 29.96 | 258.79 | 0.5082 | -820.0 | -670.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -10.35 | 19.22 | 30.20 | 250.99 | 0.5255 | -810.0 | -643.4 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -10.39 | 18.97 | 29.96 | 250.80 | 0.5222 | -745.0 | -621.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
