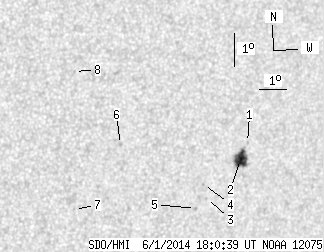

SDO HMI 2014-06-01 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.54 | 25.92 | 9.17 | 16.20 | -8.78 | 24.71 | 36.80 | 256.29 | 0.6113 | 530.6 | 297.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.68 | -8.22 | 25.58 | 37.68 | 257.45 | 0.6219 | 418.0 | 367.2 | |
| 14.54 | 19.06 | 9.17 | 12.02 | -8.74 | 25.37 | 37.46 | 256.56 | 0.6203 | 898.7 | 557.1 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -9.95 | 24.20 | 36.30 | 254.26 | 0.6080 | 544.0 | 431.6 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -9.52 | 24.03 | 36.13 | 254.90 | 0.6045 | 744.0 | 616.0 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -10.26 | 23.82 | 35.92 | 253.63 | 0.6038 | 622.0 | 613.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -8.31 | 20.80 | 32.89 | 255.84 | 0.5563 | -702.0 | -591.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -10.31 | 19.32 | 31.42 | 251.66 | 0.5424 | -712.0 | -657.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -6.08 | 18.96 | 31.06 | 259.32 | 0.5241 | -576.0 | -496.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
