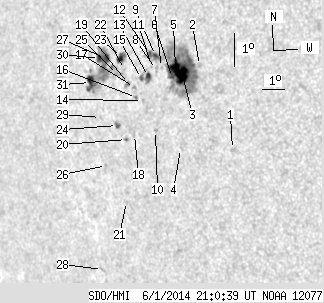

SDO HMI 2014-06-01 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.99 | 249.06 | 43.76 | 183.85 | -4.32 | 298.43 | -47.80 | 95.28 | 0.7439 | 392.8 | 160.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.63 | -6.58 | 301.95 | -44.29 | 98.78 | 0.7042 | 147.0 | 183.5 | |
| 0.00 | 2.08 | 0.00 | 1.47 | -4.00 | 300.77 | -45.47 | 95.02 | 0.7162 | 276.0 | 220.3 | |
| 15.99 | 137.58 | 11.48 | 99.03 | -4.27 | 300.00 | -46.24 | 95.33 | 0.7257 | 1133.2 | 398.3 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -6.53 | 299.68 | -46.56 | 98.40 | 0.7315 | 681.0 | 501.4 | |
| 10.03 | -3.00 | 7.23 | -3.00 | -4.05 | 299.70 | -46.53 | 95.01 | 0.7290 | 858.1 | 999999 | |
| 0.90 | -3.00 | 0.65 | -3.00 | -4.36 | 299.55 | -46.69 | 95.42 | 0.7311 | 512.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -4.05 | 299.08 | -47.16 | 94.96 | 0.7365 | 487.0 | 321.4 | |
| 0.00 | 2.35 | 0.00 | 1.72 | -4.11 | 298.85 | -47.39 | 95.03 | 0.7392 | 499.0 | 393.5 | |
| 2.17 | -3.00 | 1.59 | -3.00 | -3.68 | 298.83 | -47.40 | 94.45 | 0.7391 | 591.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -5.97 | 298.62 | -47.62 | 97.52 | 0.7433 | 660.0 | 505.4 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -3.98 | 298.63 | -47.61 | 94.84 | 0.7417 | 370.0 | 342.7 | |
| 1.63 | -3.00 | 1.20 | -3.00 | -3.65 | 298.61 | -47.63 | 94.39 | 0.7417 | 519.9 | 999999 | |
| 2.98 | 9.94 | 2.20 | 7.35 | -4.32 | 298.47 | -47.77 | 95.28 | 0.7438 | 820.0 | 535.0 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -5.05 | 298.12 | -48.11 | 96.24 | 0.7483 | 545.0 | 372.4 | |
| 1.17 | -13.00 | 0.87 | -13.00 | -4.38 | 298.14 | -48.10 | 95.34 | 0.7476 | 622.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.22 | -4.95 | 297.86 | -48.38 | 96.09 | 0.7513 | 606.0 | 525.5 | |
| 0.00 | 1.81 | 0.00 | 1.35 | -4.65 | 297.79 | -48.44 | 95.68 | 0.7518 | 702.0 | 540.7 | |
| 0.00 | 1.99 | 0.00 | 1.50 | -6.08 | 297.64 | -48.60 | 97.57 | 0.7547 | 231.0 | 303.9 | |
| 0.72 | 2.98 | 0.54 | 2.25 | -4.52 | 297.53 | -48.71 | 95.49 | 0.7547 | 540.6 | 396.0 | |
| 0.36 | 1.45 | 0.27 | 1.10 | -6.23 | 297.25 | -48.99 | 97.72 | 0.7593 | 575.0 | 489.6 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -8.13 | 296.96 | -49.27 | 100.18 | 0.7645 | -524.0 | -466.4 | |
| 0.00 | 1.17 | 0.00 | 0.89 | -4.10 | 297.38 | -48.86 | 94.91 | 0.7562 | 335.0 | 195.3 | |
| 4.97 | 7.77 | 3.76 | 5.87 | -3.73 | 297.27 | -48.97 | 94.42 | 0.7572 | 515.1 | 257.2 | |
| 1.63 | 3.16 | 1.24 | 2.41 | -5.80 | 296.88 | -49.36 | 97.12 | 0.7631 | 590.2 | 475.1 | |
| 0.00 | 4.07 | 0.00 | 3.09 | -4.25 | 297.04 | -49.20 | 95.09 | 0.7601 | 30.0 | -43.6 | |
| 0.00 | 1.17 | 0.00 | 0.91 | -7.02 | 296.19 | -50.05 | 98.64 | 0.7718 | -411.0 | -317.8 | |
| 5.06 | 58.81 | 3.88 | 45.42 | -3.75 | 296.52 | -49.72 | 94.41 | 0.7658 | -18.4 | -476.3 | |
| 0.00 | 2.17 | 0.00 | 1.72 | -10.21 | 295.40 | -50.84 | 102.62 | 0.7842 | -515.0 | -501.6 | |
| 0.00 | 0.90 | 0.00 | 0.70 | -5.55 | 296.10 | -50.14 | 96.72 | 0.7715 | -332.0 | -204.7 | |
| 3.25 | -27.00 | 2.51 | -27.00 | -3.75 | 296.23 | -50.01 | 94.39 | 0.7690 | -652.9 | 999999 | |
| 8.13 | -27.00 | 6.34 | -27.00 | -4.48 | 295.74 | -50.50 | 95.31 | 0.7748 | -783.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
