SDO HMI 2014-06-01 23:00:39 UT

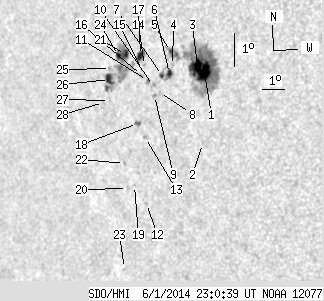

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.70 | 240.61 | 35.25 | 173.97 | -4.29 | 298.47 | -46.66 | 95.35 | 0.7305 | 420.3 | 168.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-01 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.00 | 137.07 | 10.54 | 96.58 | -4.27 | 300.07 | -45.06 | 95.44 | 0.7114 | 1156.2 | 430.1 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -6.44 | 299.77 | -45.36 | 98.44 | 0.7171 | 507.0 | 438.1 | |
| 9.67 | -1.00 | 6.83 | -1.00 | -4.08 | 299.78 | -45.35 | 95.16 | 0.7148 | 925.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -4.04 | 298.68 | -46.45 | 95.02 | 0.7280 | 606.0 | 454.5 | |
| 1.36 | -1.00 | 0.98 | -1.00 | -3.62 | 298.62 | -46.51 | 94.43 | 0.7285 | 589.2 | 999999 | |
| 3.07 | 11.93 | 2.22 | 8.64 | -4.29 | 298.53 | -46.60 | 95.34 | 0.7300 | 811.1 | 471.3 | |
| 1.36 | -6.00 | 0.99 | -6.00 | -4.35 | 298.21 | -46.92 | 95.40 | 0.7338 | 577.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -4.86 | 298.03 | -47.10 | 96.09 | 0.7363 | 632.0 | 544.4 | |
| 0.00 | 1.72 | 0.00 | 1.26 | -4.95 | 297.79 | -47.33 | 96.19 | 0.7392 | 594.0 | 473.8 | |
| 0.00 | 1.99 | 0.00 | 1.46 | -4.65 | 297.78 | -47.35 | 95.77 | 0.7391 | 678.0 | 530.5 | |
| 0.36 | 1.90 | 0.27 | 1.40 | -4.49 | 297.52 | -47.61 | 95.54 | 0.7420 | 527.0 | 397.8 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -8.25 | 297.00 | -48.13 | 100.52 | 0.7518 | -585.0 | -533.1 | |
| 0.00 | 2.08 | 0.00 | 1.54 | -6.23 | 297.24 | -47.88 | 97.86 | 0.7467 | 614.0 | 456.4 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -4.03 | 297.42 | -47.71 | 94.92 | 0.7429 | 420.0 | 327.3 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -4.19 | 297.32 | -47.81 | 95.12 | 0.7442 | 367.0 | 316.9 | |
| 0.00 | 1.90 | 0.00 | 1.40 | -4.34 | 297.26 | -47.87 | 95.32 | 0.7450 | 400.0 | 287.0 | |
| 4.97 | 7.41 | 3.67 | 5.48 | -3.73 | 297.26 | -47.87 | 94.50 | 0.7446 | 647.9 | 379.5 | |
| 1.26 | 2.89 | 0.94 | 2.16 | -5.80 | 296.93 | -48.20 | 97.25 | 0.7499 | 659.9 | 525.9 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -7.70 | 296.53 | -48.60 | 99.71 | 0.7564 | -422.0 | -368.1 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -7.79 | 296.19 | -48.94 | 99.78 | 0.7604 | -436.0 | -339.4 | |
| 3.70 | 57.10 | 2.77 | 43.08 | -3.69 | 296.58 | -48.55 | 94.41 | 0.7525 | 272.0 | -452.8 | |
| 0.00 | 1.17 | 0.00 | 0.89 | -7.02 | 296.16 | -48.96 | 98.77 | 0.7598 | -465.0 | -372.2 | |
| 0.00 | 1.17 | 0.00 | 0.91 | -10.25 | 295.59 | -49.54 | 102.89 | 0.7704 | -677.0 | -539.7 | |
| 2.53 | -21.00 | 1.91 | -21.00 | -3.72 | 296.25 | -48.88 | 94.42 | 0.7563 | -561.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.24 | -4.11 | 295.84 | -49.29 | 94.92 | 0.7611 | -295.0 | -391.7 | |
| 5.42 | -21.00 | 4.13 | -21.00 | -4.45 | 295.77 | -49.36 | 95.35 | 0.7621 | -779.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -5.09 | 295.70 | -49.43 | 96.19 | 0.7633 | -618.0 | -436.8 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -5.15 | 295.41 | -49.72 | 96.24 | 0.7666 | -523.0 | -441.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
